MINERAL WOOL 조립작업 구현

2022-08-04

AASX Package Explorer 를 이용하여 MINERAL WOOL 조립작업 구현

구현된 aasx 구현된 aasx

Package Tool 을 이용하여 MINERAL WOOL 조립작업을 구현해 보았습니다.

해당문서는 각 과정을 담고 있습니다.

BOM

BOM(Bill of Material)은 한국어로 ‘자재명세서’라고도 합니다.

제품을 생산하는데 소요되는 원재료 또는 부분품에 대한 상세내역입니다.

BOM은 한번 만들고 끝나는 것이 아니라 제품의 생성부터 폐기까지 제품정보와 속성을 공유하고 지속적으로 관리해야 하죠.

BOM은 제품 생산에서 가장 중요한 정보입니다.

어떤 물품을 생산하고자 할 때 어떠한 부품이 몇 개 소요되고, 조립과정을 통해 만들어진 주요 부분품들은 어떤 것이 있으며, 이러한 부분품을 어떻게 모아서 최종 완제품을 구성하게 되는지 일목요연하게 정리한 소요자재명세표이기 때문에 BOM만 있으면 그 제품을 그대로 베껴서 같은 가격으로 양산까지 할 수도 있습니다.

아이폰이나 갤럭시 스마트폰의 제조원가가 얼마라는 기사를 보신 적 있을 거예요. 이런 제조원가를 따질 때도 BOM이 필요합니다.

애플 아이폰 7의 BOM 애플 아이폰 7의 BOM

BOM은 설계부터 생산, AS까지 약속된 코드 체계이지만, 다양한 버전이 존재합니다.

  • 설계 단계에서 쓰이는 EBOM
  • 제조 단계의 MBOM
  • 세일즈의 SBOM
  • 유통/재고 관리의 XBOM

다양한 BOM 다양한 BOM

아래는 BOM의 예시인데, BOM_Aggregate로 충분히 그릴수 있는 도면으로 생각이 됩니다.

다양한 BOM 예시 BOM 예시

아래는 직접 제조 단계인 MBOM을 간단하게 구현한 이미지 입니다.

MINERAL WOOL 조립 작업 MBOM MINERAL WOOL 조립 작업 MBOM

MES

MES는 수주에서 완제품 출하에 이르는 생산활동을 최적화 할 수 있는 정보를 제공….

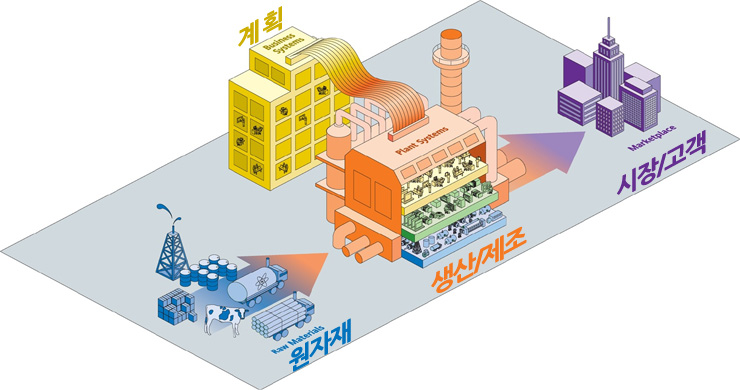

MES 정의 그림 MES 정의 그림

일반적으로 MES는 제품주문에 의한 착수에서 완성품의 품질검사까지 전 생산활동을 관리하는 시스템으로 생산 현장의 각종 정보, 즉 생산실적, 작업자활동, 설비가동, 제품 품질정보 등을 실시간으로 수집하여 집계/분석/모니터링 및 생산공정을 제어함으로써 고품질의 수익 지향적 생산체제를 갖추게 하는 통합 생산관리시스템을 말합니다.

주요한 키워드

  • 생산실적
  • 작업자활동
  • 설비가동
  • 생산 현장의 각종 정보

아래는 OperationData Submodel 을 이용하여 MES의 정보들을 나타낸 것이며, 생산실적, 설비가동, 부품 소요량 등을 나타내고 있습니다.

OPCUA 프로토콜을 이용하여 통신하게 되며, 각 데이터는 실시간으로 화면에 출력하게 됩니다.

MES를 OperationData로 표현 MES를 OperationData로 표현

MES 3계층 구조

스팩 (조금 더 상세히 표현)

Submodel 하위에 올수 있는 Element 들 (22.06.16 Aasx PackEx 사용방법에 적어두었던 내용입니다)

Element 설명
SubmodelElementCollection 하위 계층 구성
Property 서브 모델 요소를 구성할 수 있는 컬렉션 모든 값 정보와 기본 캐리어
MultiLanguageProperty 다국어 속성
Range 범위 지정(가령 온도에서 최저 온도, 최고 온도)
File 하나의 파일 참조
Blob 직접 바이너리 데이터를 넣을 수 있음
ReferenceElement 다른 서브 모델 요소를 참조
RelationshipElement 많은 관계 요소를 수행
AnnotatedRelationshipElement
Capability
Operation
BasicEvent
Entity BOM 구조를 나타낼 때 주로 사용

위 Element를 사용하여 조금 더 상세히 표현할 수 있으나, Property 에서 크게 벗어나는 값은 없을것 같기도 합니다.

Submodel 정리

  1. AASX Package Explorer 기본 Submodel

    기본 Submodel 기본 Submodel

  2. AAS Samples 의 Festo Demo Box에서 추출

    AAS Samples 에 있는 예제들중 Festo Demo Box의 Submodel 에서 BOM, OperationData를 export 하였습니다.

    Submodel Plugin export Submodel Plugin export

기타 Submodel을 구현하고자 하실 경우에는 Create new Submodel of kind Instance 버튼으로 직접 만들어야 합니다.

AAS로 모델링 작업

AAS 모델링 AAS 모델링

실제로 구현한 파일(MINERAL WOOL 입고검사.aasx)

cdd 적용

ecl@ss

이미 정의 된 값

  • Ementic ID

정의해야 되는 값

  • idShort
  • category
  • unit
  • value Type
  • value

  1. cdd 접속

  2. 파일 다운로드

  3. iec-cdd 폴더에 추가

Electric/electronic components (IEC 61360-4)

  • 0112/2///61360_4#AAA001 - component
    • AAA002 - electric/ electronic component
      • AAA003 - amplifier
        • AAA004 - low-frequency amplifier
          • AAA005 - power amplifier
          • AAA006 - voltage amplifier
            • AAA007 - differential amplifier
              • AAA008 - operational amplifier
              • AAA009 - AC-coupled amplifier
            • AAA010 - single-sided amplifier
        • AAA011 - radio frequency amplifier
        • AAA012 - wideband amplifier
      • AAA013 - antenna
        • AAA014 - capacitive antenna
        • AAA015 - inductive antenna
        • AAA016 - resistive antenna
      • AAA017 - battery
        • AAA018 - primary battery
        • AAA019 - secondary battery
      • AAA020 - capacitor
        • AAA021 - fixed capacitor
          • AAA022 - fixed air capacitor
          • AAA023 - fixed ceramic capacitor
            • AAA024 - fixed class 1 ceramic capacitor
            • AAA025 - fixed class 2 ceramic capacitor
          • AAA026 - fixed electrolytic capacitor
            • AAA501 - solid tantalum electrolytic
            • AAA502 - non-solid tantalum electrolytic
            • AAA503 - solid aluminium electrolytic
            • AAA504 - non-solid aluminium electrolytic
          • AAA027 - fixed film capacitor
          • AAA028 - fixed glass capacitor
          • AAA029 - fixed mica capacitor
          • AAA030 - fixed paper capacitor
          • AAA505 - fixed mixed-dielectric capacitor
        • AAA031 - variable capacitor
      • AAA032 - conductor
        • AAA033 - bare conductor
        • AAA034 - insulated conductor
          • AAA035 - cable
            • AAA036 - power cable, electric power cable
            • AAA037 - signal cable
              • AAA038 - LF cable
              • AAA039 - RF cable
          • AAA040 - insulated wire
      • AAA041 - delay line
      • AAA042 - diode device
        • AAA043 - bridge rectifier
        • AAA044 - diode
          • AAA045 - breakover diode
          • AAA046 - rectifier diode
          • AAA047 - signal diode
          • AAA048 - stabilizer diode
            • AAA049 - current regulator diode
            • AAA050 - voltage reference diode
            • AAA051 - voltage regulator diode
            • AAA052 - stabistor diode
            • AAA053 - transient suppressor diode
          • AAA054 - variable capacitance diode
        • AAA055 - voltage multiplier
      • AAA056 - filter
        • AFA001 - band pass filter
      • AAA057 - integrated circuit
        • AAA058 - analogue signal function
          • AFA016 - comparator
          • AFA019 - integrated circuit for power supply
            • AFA020 - integrated circuit for series regulator
            • AFA021 - integrated circuit for shunt regulator
            • AFA022 - integrated circuit for switching regulator
            • AFA023 - integrated circuit for voltage detector
        • AAA059 - digital signal function
          • AAA060 - combinational/ sequential/ interface
          • AAA061 - microcontroller
          • AAA062 - microprocessor
          • AAA063 - programmable logic device
          • AAA064 - storage function
            • AAA065 - content addressable memory IC
            • AAA066 - charge coupled device IC
            • AAA067 - random access memory IC
              • AAA068 - dynamic RAM IC
              • AAA069 - static RAM IC
            • AAA070 - read only memory IC
            • AAA071 - register
            • AFA017 - flash memory
          • AFA018 - logic integrated circuit
        • AAA072 - analogue/digital signal function
        • AAA073 - periodic/dc function
      • AAA074 - inductor
        • AAA601 - fixed inductor
          • AAA225 - deflection unit
          • AAA226 - choke
          • AAA227 - coil
          • AAA228 - linearity control unit
          • AAA603 - antenna coil
          • AAA604 - solenoid
        • AAA602 - variable inductor
      • AAA075 - lamp
      • AAA076 - liquid crystal diplay
      • AAA077 - optoelectronic device
        • AAA078 - photocoupler
        • AAA079 - photoemitter
          • AAA080 - light emitting diode
          • AAA081 - infrared light emitting diode
          • AAA082 - laser
        • AAA083 - photosensor
          • AAA084 - infrared light photosensor
          • AAA085 - ultraviolet light photosensor
          • AAA086 - visible light photosensor
        • AAA597 - image pickup device
      • AAA087 - oscillator
      • AAA088 - piezoelectric device
        • AFA003 - quartz crystal device
          • AFA004 - quartz crystal unit
            • AFA005 - kHz band quartz crystal unit
            • AFA006 - MHz band quartz crystal unit
          • AFA007 - quartz crystal oscillator
            • AFA008 - simple packaged crystal oscillator
            • AFA009 - temperature compensated crystal oscillator
            • AFA010 - voltage controlled crystal oscillator
            • AFA011 - oven controlled crystal oscillator
          • AFA012 - crystal filter
      • AAA089 - resistor
        • AAA090 - fixed resistor
          • AAA091 - fixed linear resistor
            • AAA092 - single linear resistor
              • AAA509 - fixed precision resistor
              • AAA510 - fixed power resistor
              • AAA511 - fixed low-power resistor
              • AAA512 - fixed chip resistor
              • AAA513 - fixed thermostat resistor
              • AAA514 - fixed fusing resistor
            • AAA093 - linear resistor network
          • AAA094 - fixed non-linear resistor
            • AAA095 - light dependent resistor
            • AAA096 - temperature dependent resistor
              • AAA097 - NTC thermistor
              • AAA098 - PTC thermistor
            • AAA099 - voltage dependent resistor
        • AAA100 - variable resistor
          • AAA101 - two-terminal variable resistor
          • AAA102 - potentiometer
          • AAA516 - preset potentiometer
          • AAA517 - linear slide potentiometer
          • AAA607 - rotary precision potentiometer
          • AAA608 - power rotary potentiometer
          • AAA609 - low-power rotary potentiometer
      • AAA103 - sensor
        • AAA104 - humidity sensor
        • AAA105 - light sensor
        • AAA106 - magnetic field sensor
        • AAA107 - nuclear sensor
        • AAA108 - pressure sensor
        • AAA109 - proximity sensor
        • AAA110 - temperature sensor
      • AAA111 - transformer
        • AAA112 - power transformer
          • AAA113 - fixed power transformer
          • AAA114 - variable power transformer
        • AAA115 - signal transformer
          • AAA116 - fixed signal transformer
          • AAA117 - variable signal transformer
      • AAA118 - transistor
        • AAA119 - bipolar transistor
          • AAA120 - bipolar power transistor
            • AAA121 - bipolar LF power transistor
            • AAA122 - bipolar RF power transistor
          • AAA123 - bipolar small signal transistor
            • AAA124 - bipolar LF small signal transistor
            • AAA125 - bipolar RF small signal transistor
        • AAA126 - field-effect transistor
          • AAA127 - field-effect power transistor
            • AAA128 - field-effect LF power transistor
            • AAA129 - field-effect RF power transistor
          • AAA130 - field-effect small signal transistor
        • AFA015 - insulated-gate bipolar transistor
      • AAA131 - trigger device
        • AAA132 - diac
        • AAA133 - thyristor
          • AAA134 - fast turn-off thyristor
          • AAA135 - gate turn-off thyristor
          • AAA136 - reverse blocking thyristor
        • AAA137 - triac
      • AAA138 - tube
        • AAA139 - display tube
          • AAA140 - colour display tube
          • AAA141 - monochrome display tube
        • AAA142 - gas filled tube
        • AAA143 - photo sensitive tube
        • AAA144 - space charge controlled tube
        • AAA145 - space charge wave tube
      • AAA146 - tuner
      • AAA229 - microwave component
        • AAA232 - printed wiring circuit
      • AAA578 - fibre optics
        • AAA579 - fibre optic link
        • AAA580 - fibre optic connector
        • AAA581 - fibre optic switch
        • AAA582 - fibre optic branch
        • AAA583 - fibre optic coupler/ splicer
        • AAA584 - fibre optic attenuator
        • AAA585 - fibre optic detector
        • AAA586 - fibre optic isolator
        • AAA587 - fibre optic network
        • AAA588 - fibre optic light source
        • AAA589 - fibre optic modulator
        • AAA590 - fibre optic transmitter/ receiver
        • AAA591 - optical waveguide
        • AAA592 - fibre optic cable
        • AAA593 - fibre optic filter
        • AAA594 - fibre optic lense
      • AAA595 - spark gap
        • AAA605 - air spark gap
        • AAA606 - gas-filled spark gap
      • AAA596 - resonator
        • AFA002 - SAW resonator
          • AFA013 - one-port SAW resonator
          • AFA014 - two-port SAW resonator
      • AAB010 - plasma display panel
    • AAA147 - electromechanical component
      • AAA148 - connector
        • AAA518 - circular connector
        • AAA519 - rectangular connector
        • AAA520 - PCB connector
        • AAA521 - RF connector
        • AAA522 - connector for IC cards
        • AAA523 - modular connector
        • AAA526 - plug and jack
          • AAA536 - concentric plugs and jacks
            • AAA537 - concentric plugs
            • AAA538 - concentric jacks
            • AAA539 - multiple concentric jacks
          • AAA540 - pin plugs and jacks
            • AAA541 - pin plug
            • AAA542 - pin jack
            • AAA543 - multiple pin jacks
            • AAA544 - shielded pin jack
          • AAA545 - plug and jack for dc power
            • AAA546 - dc power plug
            • AAA547 - dc power jack
            • AAA548 - car plug
          • AAA549 - plug assembly
          • AAA550 - complex jack board
        • AAA527 - socket
          • AAA551 - socket for tubes
          • AAA554 - transistor socket
          • AAA555 - socket for integrated circuits
          • AAA556 - socket for PCB
          • AAA557 - power socket
          • AAA561 - signal socket
          • AAA562 - socket for quartz crystals
          • AAA563 - lighting socket
          • AAA564 - fuse holder and socket
          • AAA565 - socket for antenna feeders
        • AAA528 - terminal
          • AAA566 - small terminal
          • AAA569 - terminal array
          • AAA572 - terminal board
          • AAA573 - terminal rod
      • AAA149 - fuse
        • AAA575 - current-activated fuse
        • AAA576 - thermally-activated fuse
      • AAA150 - loudspeaker
        • AAA151 - moving conductor loudspeaker
        • AAA152 - magnetodynamic loudspeaker
        • AAA153 - ionic loudspeaker
        • AAA154 - electromagnetic loudspeaker
        • AAA155 - pneumatic loudspeaker
        • AAA156 - piezoelectric loudspeaker
        • AAA157 - electrostatic loudspeaker
        • AAA158 - magnetostrictive loudspeaker
      • AAA159 - microphone
      • AAA160 - motor
        • AAA161 - linear motor
          • AAA162 - linear ac motor
          • AAA163 - linear dc motor
          • AAA164 - linear stepping motor
          • AAA165 - linear universal motor
        • AAA166 - rotational motor
          • AAA167 - rotational ac motor
          • AAA168 - rotational dc motor
          • AAA169 - rotational stepping motor
          • AAA170 - rotational universal motor
      • AAA171 - relay
      • AAA172 - switch
        • AAA173 - reed switch
        • AAA174 - mechanical switch
        • AAA175 - thermostatic switch
      • AAA610 - connector part
        • AAA524 - connector contact
        • AAA525 - connector accessory
        • AAA611 - connector tool
        • AAA612 - connector shell
        • AAA613 - connector insert
    • AAA215 - magnetic part
      • AAA216 - hard-magnetic part
      • AAA217 - soft-magnetic part
  • 0112/2///61360_4#AAA218 - material
    • AAA219 - acoustic material
    • AAA220 - magnetic material
      • AAA221 - hard magnetic material
      • AAA222 - soft magnetic material
    • AAA223 - optical material
    • AAA224 - thermal material
    • AAA230 - printed wiring laminate
    • AAA231 - dielectric and insulating material
  • 0112/2///61360_4#AAA233 - feature
    • AAA234 - complex number value
      • AAA236 - impedance
      • AAA237 - admittance
    • AAA235 - toleranced value
      • AAA238 - toleranced capacitance
      • AAA239 - toleranced resistance
    • AAA650 - environmental conditions
      • AAA621 - temperature
      • AAA622 - humidity
      • AAA624 - pressure
      • AAA625 - ambient air composition
      • AAA626 - location
      • AAA627 - precipitation
      • AAA628 - radiation
      • AAA629 - movement of surrounding medium
      • AAA630 - isokeraunic condition
      • AAA632 - pollution
      • AAA633 - corrosion
      • AAA634 - biological condition
      • AAA635 - chemically active substance
      • AAA636 - mechanically active substance
      • AAA637 - explosive gazes and vapours
      • AAA638 - combustible dust
      • AAA639 - water from other sources than rain
      • AAA641 - condensation
      • AAA642 - vibration
      • AAA643 - seismic
      • AAA644 - impact from foreign body
      • AAA645 - electromagnetic compatibility
      • AAA646 - noise
      • AAA647 - water protection
      • AAA648 - soil
      • AAA649 - potable and other types of water
    • AAA651 - identification number
    • AAA668 - constructive solid geometry primitive
      • AAA660 - block
      • AAA661 - rectangular pyramid
      • AAA662 - right angular wedge
      • AAA663 - right circular cylinder
      • AAA664 - right circular cone
      • AAA665 - sphere
      • AAA666 - torus
      • AAA667 - Cartesian point
    • AAA750 - person and organization address data
      • AAA652 - internationally registered identification system
      • AAA653 - nationally registered identification system
      • AAA654 - named organization identification system
      • AAA655 - physical address
      • AAA656 - electronic address
      • AAA657 - postal address
      • AAA658 - person identification
    • AAA759 - object reference designation
    • AAA760 - terminal reference designatiion
    • AAA761 - classification
    • AAB001 - list of qualifiers
    • AAF525 - signal
      • AAF526 - signal variant
    • AAF603 - material declaration
    • ACA070 - material declaration
      • ACA071 - material declaration based on IEC 62474
        • ACA000 - material declaration information
        • ACA030 - material declaration blocks of properties
          • ACA001 - product
          • ACA002 - product part
          • ACA003 - product identification
          • ACA004 - toleranced mass
          • ACA005 - toleranced relative mass
          • ACA006 - material class
          • ACA007 - material
          • ACA008 - substance group
          • ACA009 - substance
          • ACA010 - exemptions
          • ACA011 - exemption
          • ACA019 - supplementary information
          • ACA020 - unambiguous identification
      • ACA072 - declaration of waste of electrical and electronic equipment
      • ACA073 - declaration of restriction of the use of certain hazardous substances
      • ACA074 - declaration of registration, evaluation, authorisation and restriction of chemicals
    • ADA036 - product discontinuation
    • ADA046 - noise emission data
    • ADA055 - transportation conditions
    • ADA056 - storage conditions
    • ADA071 - statistics
      • ADA072 - probability distribution characteristics
    • ADA073 - installation conditions
    • ADA075 - packing conditions
    • ADA077 - object description
    • ADA080 - specification references
    • ADA083 - power loss
    • ADA092 - Conformity evaluation
      • ADA094 - Registering organization
      • ADA095 - Conformity assessment body
      • ADA096 - Conformity attestation
    • ADA100 - Effectivity
      • ADA101 - Dated effectivity
      • ADA102 - Time interval based effectivity
      • ADA103 - Region based effectivity
      • ADA104 - Organization based effectivity
      • ADA105 - Domain related effectivity
      • ADA106 - Date and time (of issue)
    • ADA112 - Warranty
    • ADA137 - dependability of an item
      • ADA146 - durability of an item
        • ADA132 - after-sales-related durability issues
      • ADA214 - measures for reliability related concepts
      • ADA215 - reliability of an item
      • ADA216 - availability of an item
      • ADA217 - recoverability of an item
      • ADA218 - maintainability of an item
      • ADA219 - maintenance support performance
      • ADA229 - measures for maintainability and maintenance support related concepts
      • ADA230 - measures for availability related concepts
    • ADA231 - predictive maintenance of an item
  • 0112/2///61360_4#AAA301 - geometry
    • AAA302 - die device
      • AAA295 - bare die
      • AAA296 - bumped die
      • AAA297 - die with attached lead frame
      • AAA298 - minimally-packaged die device
      • AAA299 - two-sided bare die device
    • AAA303 - package outline
      • AAA304 - bead-shaped
        • AAA322 - axial lead
          • AAA353 - wire
            • AAA391 - straight lead
        • AAA323 - bottom lead
          • AAA354 - wire
            • AAA392 - straight lead
            • AAA393 - formed lead
      • AAA305 - chip-carrier
        • AAA324 - quad
          • AAA355 - j-bend
            • AAA394 - standard form
              • AAA445 - non-bumped package
          • AAA356 - no-lead
            • AAA395 - standard form
              • AAA446 - non-cavity package (moulded)
              • AAA447 - cavity package (ceramic)
      • AAA307 - cylindrical
        • AAA325 - axial lead
          • AAA357 - wire
            • AAA396 - straight lead
              • AAA448 - plain cylindrical
              • AAA449 - top hat package
        • AAA326 - bottom lead
          • AAA358 - wire
            • AAA397 - lead on a circle
            • AAA398 - straight leads in line
            • AAA399 - formed leads in line
            • AAA400 - leads on a square grid
            • AAA401 - offset lead
        • AAA327 - end connection
          • AAA359 - wrap-around
            • AAA402 - standard form
        • AAA328 - radial lead
          • AAA360 - solder lug
            • AAA403 - straight lead
          • AAA361 - wire
            • AAA404 - straight lead
        • AAA329 - upper connection
          • AAA362 - solder lug
            • AAA405 - standard form
              • AAA450 - clamp mount package
              • AAA451 - stud mount package
          • AAA363 - screw, internal thread
            • AAA406 - standard form
              • AAA452 - clamp mount package
              • AAA453 - stud mount package
      • AAA308 - disc-shaped
        • AAA330 - axial lead
          • AAA364 - wire
            • AAA407 - straight lead
        • AAA331 - bottom lead
          • AAA365 - wire
            • AAA408 - straight lead
            • AAA409 - formed lead
      • AAA309 - flange-mount
        • AAA332 - bottom lead
          • AAA366 - pin
            • AAA410 - offset lead
            • AAA411 - leads on a circle
        • AAA333 - double-row lead
          • AAA367 - pin
            • AAA412 - round pin
        • AAA334 - single-row lead
          • AAA368 - through-hole
            • AAA413 - straight flat lead
            • AAA414 - straight v-section lead
        • AAA335 - zig-zag lead
          • AAA369 - through-hole
            • AAA415 - straight flat lead
            • AAA416 - straight v-section lead
      • AAA311 - flat-pack
        • AAA336 - double-row lead
          • AAA370 - flat
            • AAA417 - straight flat lead
        • AAA337 - quad
          • AAA371 - gull wing
            • AAA418 - standard form
              • AAA454 - non-bumped package
      • AAA312 - grid-array
        • AAA338 - bottom lead
          • AAA372 - butt
            • AAA419 - solder ball
        • AAA339 - perpendicular
          • AAA373 - pin
            • AAA420 - round pin
              • AAA455 - cavity up
              • AAA456 - cavity down
      • AAA313 - in-line
        • AAA340 - double-row lead
          • AAA374 - pin
            • AAA421 - round pin
            • AAA422 - rectangular pin
          • AAA375 - through-hole
            • AAA423 - standard form
        • AAA341 - quad
          • AAA376 - through-hole
            • AAA424 - standard form
        • AAA342 - single-row lead
          • AAA377 - through-hole
            • AAA425 - standard form
        • AAA343 - triple row
          • AAA378 - through-hole
            • AAA426 - standard form
        • AAA344 - zig-zag lead
          • AAA379 - through-hole
            • AAA427 - standard form
      • AAA314 - long-form
        • AAA345 - axial lead
          • AAA380 - wire
            • AAA428 - straight lead
      • AAA318 - post-mount
        • AAA346 - upper connection
          • AAA381 - solder lug
            • AAA429 - one fixed tag
            • AAA430 - two fixed tags
          • AAA382 - high current cable
            • AAA431 - one lead with tag
            • AAA432 - two leads with tags
            • AAA433 - three leads with tags
            • AAA434 - one lead no tag
      • AAA319 - rectangular
        • AAA347 - axial lead
          • AAA383 - solder lug
            • AAA435 - strip lead
          • AAA384 - wire
            • AAA436 - off-set lead
        • AAA348 - bottom lead
          • AAA385 - wire
            • AAA437 - straight lead
            • AAA438 - formed lead
        • AAA349 - end connection
          • AAA386 - no lead
            • AAA439 - standard form
          • AAA387 - wrap-around
            • AAA440 - standard form
      • AAA320 - small-outline
        • AAA350 - double-row lead
          • AAA388 - gull-wing
            • AAA441 - multiple leads
            • AAA442 - three leads
        • AAA351 - quad
          • AAA389 - gull-wing
            • AAA443 - standard form
        • AAA352 - single-row lead
          • AAA390 - gull-wing
            • AAA444 - two leads, stubs and tabs

Process automation (IEC 61987 series)

  • 0112/2///61987#ABA000 - Equipment for industrial-process automation
    • ABV000 - Characterization
      • ABA001 - Measuring instrument
        • ABA643 - Gauge
          • ABA644 - Flow gauge
            • ABA645 - Positive displacement flow gauge
              • ABA646 - Oval gear flow gauge
              • ABD338 - Helix flow gauge
              • ABD339 - Piston flow gauge
              • ABD389 - Rotary flow gauge
            • ABA647 - Turbine flow gauge
            • ABA648 - Variable area flow gauge
          • ABA649 - Level gauge
            • ABA650 - Magnetic level gauge
            • ABA651 - Mechanical tank gauge
            • ABE451 - Sight level gauge
          • ABA652 - Pressure gauge
            • ABA653 - Absolute pressure gauge
              • ABA654 - Aneroid barometer
            • ABA655 - Differential pressure gauge
              • ABA656 - Bellows differential pressure gauge
              • ABA657 - Bourdon tube differential pressure gauge
              • ABA658 - Diaphragm differential pressure gauge
              • ABA659 - Piston-type differential pressure gauge
              • ABA660 - Diaphragm seal differential pressure gauge
            • ABA661 - Draft pressure gauge
            • ABA662 - Gauge pressure gauge
              • ABA663 - Bellows pressure gauge
              • ABA664 - Bourdon tube pressure gauge
              • ABA665 - Capsule pressure gauge
              • ABA666 - Diaphragm pressure gauge
              • ABA667 - Diaphragm seal pressure gauge
            • ABA668 - Manometer
              • ABA669 - Inclined tube manometer
              • ABA670 - U-tube manometer
              • ABA671 - Well-type manometer
          • ABA672 - Temperature gauge
            • ABA673 - Bimetallic temperature gauge
            • ABA674 - Filled system temperature gauge
            • ABA675 - Glass thermometer
          • ABA676 - Velocity gauge
            • ABA677 - Tachometer
          • ABA678 - Volume gauge
            • ABA679 - Positive displacement totalizer
            • ABA680 - Turbine totalizer
          • ABA681 - Weight gauge
            • ABA682 - Mechanical weight scale
            • ABA683 - Strain gauge weight gauge
        • ABA684 - Measuring assembly
          • ABA685 - Flow measuring assembly
          • ABA686 - Pressure measuring assembly
          • ABA687 - Temperature measuring assembly
            • ABA688 - Multipoint temperature measuring assembly
        • ABA689 - Sight indicator
          • ABA690 - Flow sight indicator
            • ABA691 - Sight glass flow indicator
          • ABA692 - Level sight indicator
            • ABA693 - Sight level indicator
          • ABA694 - Pressure sight indicator
            • ABA695 - Diaphragm-type differential pressure sight indicator
            • ABA696 - Piston-type differential pressure sight indicator
        • ABA697 - Switch
          • ABA698 - Flow switch
            • ABA699 - Mechanical flow switch
              • ABA700 - Paddle flow switch
              • ABE637 - Rotating vane flow switch
            • ABA701 - Thermal flow switch
            • ABA702 - Variable area flow switch
          • ABA703 - Level switch
            • ABA704 - Displacer level switch
            • ABA705 - Electrical-based level switch
              • ABA706 - Capacitance level switch
              • ABA707 - Conductance level switch
            • ABA708 - Float level switch
              • ABA709 - Magnetic float level switch
              • ABA710 - Tilt level switch
            • ABA711 - Hydraulic pressure level switch
            • ABA712 - Mechanical level switch
              • ABA713 - Rotary paddle switch
            • ABA714 - Nuclear level switch
            • ABA715 - Resistance tape switch
            • ABA716 - Thermal level switch
            • ABA717 - Vibrating level switch
              • ABA718 - Vibrating fork level switch
              • ABA719 - Vibrating rod level switch
            • ABA720 - Wave level switch
              • ABA721 - Free-space radar level switch
              • ABA722 - Guided-wave level switch
              • ABA723 - Optical level switch
                • ABA724 - Optical reflection level switch
                • ABA725 - Optical refraction level switch
              • ABA726 - Microwave level switch
              • ABA727 - Ultrasonic level switch
            • ABE754 - Level switch (generic)
          • ABA728 - Position switch
            • ABA729 - Electromechanical switch
            • ABA730 - Photoelectric switch
            • ABA731 - Proximity switch
          • ABA732 - Pressure switch
            • ABA733 - Gauge pressure switch
            • ABA734 - Absolute pressure switch
            • ABA735 - Differential pressure switch
          • ABA736 - Speed switch
          • ABA737 - Temperature switch
            • ABA738 - Bimetallic temperature switch
            • ABA739 - Filled-system temperature switch
            • ABA740 - RTD temperature switch
            • ABA741 - TC temperature switch
            • ABA742 - Differential temperature switch
              • ABA743 - Bimetallic differential temperature switch
              • ABA744 - Filled-system differential temperature switch
              • ABA745 - RTD differential temperature switch
              • ABA746 - TC differential temperature switch
            • ABE332 - Radiation temperature switch
          • ABA747 - Torque switch
          • ABA748 - Vibration switch
          • ABA749 - Weight switch
            • ABA750 - Strain gauge weight switch
        • ABA751 - Transmitter
          • ABA752 - Accelerometer
          • ABA753 - Current transmitter
          • ABA754 - Density transmitter
            • ABA755 - Buoyancy density transmitter
            • ABA756 - Refractive index density transmitter
            • ABA757 - Vibrating tube density transmitter
            • ABA758 - Radiometric density transmitter
            • ABA759 - Vibrating fork/rod density transmitter
            • ABA760 - Ultrasonic density transmitter
            • ABE726 - Microwave density transmitter
            • ABH334 - Density transmitter (generic)
          • ABA761 - Flow transmitter
            • ABA762 - Mass flow transmitter
              • ABA763 - Coriolis mass flow transmitter
              • ABA764 - Thermal mass flow transmitter
              • ABC566 - Sonic nozzle mass flow transmitter (critical flow nozzle, critical flow venturi)
            • ABA765 - Multiphase flow transmitter
            • ABA766 - Pressure-type flow transmitter
              • ABA767 - Differential pressure flow transmitter
                • ABA768 - Pitot tube flow transmitter
                • ABA769 - Segmental wedge flow transmitter
                • ABA770 - V-cone flow transmitter
                • ABA771 - Variable area flow transmitter
                  • ABA772 - Rotameter flow transmitter
                • ABA773 - Venturi tube flow transmitter
                • ABC567 - Elliptical throat flow transmitter
                • ABE425 - Orifice plate flow meter
                • ABE426 - Dall tube flow meter
                • ABE427 - Elbow flow meter
                • ABE428 - Flow nozzle flow meter
              • ABA774 - Force-balance flow transmitter
                • ABA775 - Impact flow transmitter
                • ABA776 - Target flow transmitter
                • ABA777 - Vane flow transmitter
              • ABA778 - Head-type flow transmitter
                • ABA779 - Open channel flow transmitter
                  • ABA780 - Flume flow transmitter
                  • ABA781 - Weir flow transmitter
            • ABA782 - Volume flow transmitter
              • ABA783 - Positive displacement flow transmitter
                • ABA784 - Gear flow transmitter
                  • ABA785 - Oval gear flow transmitter
                • ABA786 - Helix flow transmitter
                • ABA787 - Nutating disc flow transmitter
                • ABA788 - Piston flow transmitter
                • ABA789 - Rotary flow transmitter
            • ABA790 - Velocity flow transmitter
              • ABA791 - Doppler flow transmitter
              • ABA792 - Electromagnetic flow transmitter
              • ABA793 - Electromagnetic insertion flow transmitter
              • ABA794 - Rotating element flow transmitter
                • ABA795 - Paddle flow transmitter
                • ABA796 - Paddle insertion flow transmitter
                • ABA797 - Propeller flow transmitter
                • ABA798 - Rotating vane flow transmitter
                • ABA799 - Turbine flow transmitter
              • ABA800 - Swirl flow transmitter
              • ABA801 - Ultrasonic flow transmitter
              • ABA802 - Vortex flow transmitter
            • ABV010 - Flow transmitter (generic)
          • ABA803 - Level transmitter
            • ABA804 - Displacer level transmitter
            • ABA805 - Electrical-based level transmitter
              • ABA806 - Capacitance level transmitter
              • ABA807 - Admittance level transmitter
              • ABA808 - Conductance level transmitter
              • ABA822 - Resistance-tape level transmitter
            • ABA809 - Float level transmitter
              • ABA810 - Magnetostrictive level transmitter
              • ABA811 - Magnet level transmitter
            • ABA812 - Hydrostatic pressure level transmitter
              • ABA813 - Differential pressure level transmitter
              • ABA814 - Pressure level transmitter
                • ABA815 - Immersion level transmitter
            • ABA816 - Mechanical level transmitter
              • ABA817 - Plumb bob level transmitter
              • ABA818 - Servo level transmitter
            • ABA819 - Nuclear level transmitter
            • ABA820 - Optical level transmitter
              • ABA821 - Optical refraction level transmitter
            • ABA823 - Wave level transmitter
              • ABA824 - Free-space radar level transmitter
                • ABA825 - Continuous-wave radar level transmitter
                • ABA826 - Pulsed-wave radar level transmitter
              • ABA827 - Guided-wave radar level transmitter
              • ABA828 - Laser level transmitter
              • ABA829 - Ultrasonic level transmitter
            • ABD390 - Gravimetric level transmitter
            • ABE734 - Level transmitter (generic)
          • ABA830 - Power transmitter
          • ABA831 - Pressure transmitter
            • ABA832 - Absolute pressure transmitter
            • ABA833 - Differential pressure transmitter
            • ABA834 - Gauge pressure transmitter
          • ABA835 - Temperature transmitter
            • ABA837 - Contact temperature transmitter
            • ABE363 - Non-contact temperature transmitter
              • ABA836 - Radiation temperature transmitter
                • ABE340 - Point temperature measuring device
                  • ABE341 - Radiation thermometer
                    • ABE342 - Radiance thermometer
                      • ABE343 - Spectral radiation thermometer
                      • ABE344 - Band radiation thermometer
                      • ABE345 - Total radiation thermometer
                      • ABE346 - Intensity comparison thermometer
                    • ABE347 - Ratio radiation thermometer
                      • ABE348 - Ratio radiation thermometer with filter wheel
                      • ABE349 - Ratio radiation thermometer with two independent detectors
                      • ABE350 - Ratio radiation thermometer with double detectors
                    • ABE351 - Multichannel radiation thermometer
                      • ABE352 - Multichannel radiation thermometer with filter wheel
                      • ABE353 - Multichannel radiation thermometer with multiple independent detectors
                    • ABE354 - Transfer radiation thermometer
                • ABE355 - Line temperature measuring device
                  • ABE356 - Line scanner
                  • ABE357 - Line camera
                • ABE358 - Area temperature measuring device (thermographic device)
                  • ABE359 - Thermographic device with single element detector
                  • ABE360 - Thermographic device with line detector
                  • ABE361 - Thermographic device with matrix detector
            • ABE757 - Temperature transmitter (generic)
          • ABA839 - Velocity transmitter
            • ABA840 - Anemometer
              • ABA841 - Voltage transmitter
          • ABA842 - Weight transmitter
            • ABA843 - Strain gauge weight transmitter
            • ABA844 - Solid mass flow transmitter
      • ABA845 - Measuring instrument component
        • ABA846 - Analog signal switch
        • ABA847 - Connection head
          • ABA848 - Temperature transmitter connection head
        • ABA849 - Converter
          • ABA850 - Current to hydraulic converter
          • ABA851 - Current to pneumatic converter
          • ABA852 - Digital to analog converter
          • ABA853 - Frequency to analog converter
          • ABA854 - Pressure to current converter
          • ABA855 - Analog to digital converter
        • ABA856 - Fitting
          • ABA857 - Extension tube
          • ABA858 - Bypass/measuring chamber
          • ABA859 - Protection tube
          • ABA860 - Thermowell
          • ABE452 - Stilling well
          • ABE453 - Window
          • ABE664 - Thermowell extension
        • ABA861 - Remote seal
          • ABA862 - Capsule/probe seal
          • ABA863 - Flush diaphragm seal
          • ABA864 - Inline seal
          • ABA865 - Extended diaphragm seal
        • ABA866 - Relay
          • ABA867 - Electrical relay
          • ABA868 - Pneumatic relay
            • ABA869 - Booster relay
        • ABA870 - Sensing element
          • ABA871 - Force sensing element
            • ABA872 - Load cell
            • ABA873 - Strain gauge element
          • ABA874 - Proximity probe
          • ABA875 - Temperature element
            • ABA876 - Resistance temperature element
              • ABA877 - RTD element
              • ABA878 - Thermistor element
            • ABE333 - Voltage temperature element
              • ABA879 - Thermocouple (TC)
            • ABE334 - Infrared radiation detector
              • ABE335 - Photon detector
              • ABE336 - Thermal detector
        • ABA880 - Transmitter
          • ABA638 - Separate transmitter
            • ABA882 - Separate flow transmitter
              • ABA883 - Head-mounted flow transmitter
              • ABE337 - Field-mounted flow transmitter
              • ABE338 - Panel-mounted flow transmitter
              • ABE339 - Rack-mounted flow transmitter
            • ABE446 - Separate temperature transmitter
              • ABE447 - Head-mounted temperature transmitter
              • ABE448 - Field-mounted temperature transmitter
              • ABE449 - Panel-mounted temperature transmitter
              • ABE450 - Rack-mounted temperature transmitter
            • ABE639 - Separate level transmitter/switching unit
              • ABE640 - Head-mounted level transmitter/switching unit
              • ABE641 - Field-mounted level transmitter/switching unit
              • ABE642 - Panel-mounted level transmitter/switching unit
              • ABE643 - Rack-mounted level transmitter/switching unit
            • ABH335 - Separate density transmitter
              • ABH336 - Head-mounted density transmitter
              • ABH337 - Field-mounted density transmitter
              • ABH338 - Panel-mounted density transmitter
              • ABH339 - Rack-mounted density transmitter
          • ABA881 - Integral transmitter
        • ABA884 - Primary element
          • ABA885 - Flume
          • ABA886 - Nozzle
          • ABA887 - Orifice plate
          • ABA888 - Pitot tube
          • ABA889 - Weir
          • ABC568 - Sonic nozzle (critical flow nozzle, critical flow venture)
        • ABD337 - Manifold
        • ABE362 - Insert/element
      • ABD340 - Final control element
        • ABD341 - Control valve or automated on/off-valve
          • ABD342 - Valve body assembly
            • ABD343 - Valve with linear motion
              • ABD344 - Globe valve
              • ABD345 - Gate valve
              • ABD346 - Diaphragm/pinch valve
            • ABD347 - Valve with rotary motion
              • ABD348 - Eccentric plug valve
              • ABD349 - Ball valve
              • ABD350 - Segmented ball valve
              • ABD351 - Plug valve
              • ABD352 - Butterfly valve
            • ABE330 - Valve body assembly (generic)
          • ABD353 - Actuator
            • ABD354 - Linear actuator
              • ABD355 - Electrical linear actuator
              • ABD356 - Pneumatic linear actuator
              • ABD357 - Hydraulic linear actuator
              • ABD358 - Electro-hydraulic linear actuator
              • ABD359 - Manual linear actuator
            • ABD360 - Rotary actuator
              • ABD361 - Electrical rotary actuator
              • ABD362 - Electro-hydraulic rotary actuator
              • ABD363 - Hydraulic rotary actuator
              • ABD364 - Manual rotary actuator
              • ABD365 - Pneumatic rotary actuator
          • ABD366 - Valve/actuator accessory
            • ABD367 - Positioner
            • ABD368 - Limit switch
            • ABD369 - Position transmitter
            • ABD370 - I/P converter
            • ABD371 - Solenoid valve
            • ABD372 - Volume booster
            • ABD373 - Actuator relief valve
            • ABD376 - Air operated valve
            • ABD377 - Filter regulator
            • ABD378 - Lock-up relay
            • ABD379 - Reversing amplifier
            • ABD380 - Quick exhaust
            • ABE322 - Volume tank
          • ABD381 - Flow modification accessory
            • ABD382 - Restriction orifice
            • ABD383 - Diffuser
        • ABD385 - Process regulator
          • ABD374 - Differential pressure regulator
          • ABD375 - Flow regulator
          • ABD386 - Pressure reducing regulator
          • ABD387 - Back pressure/excess pressure regulator
          • ABD388 - Temperature regulator
    • ABV001 - Libraries
      • ABJ604 - LOQ
      • ABJ725 - LOPD
        • ABJ726 - LOPD for measurement variables
        • ABN602 - LOPD for setpoint variables
        • ABN605 - LOPD for general device variables/status
        • ABN606 - LOPD for general device parameters
        • ABN608 - LOPD for general functions
      • ABV500 - LOP
        • ABH525 - Additional aspects
          • ABA362 - Document information
          • ABA398 - Project information
          • ABA439 - Administrative information
          • ABH496 - Device information
          • ABH517 - Device documents supplied
          • ABH529 - Output signal processing
          • ABH552 - Calibration and test results
          • ABH806 - Storage
          • ABH838 - Digital communication parameters
          • ABI413 - Packaging and transportation
          • ABI467 - Accessories and spare parts
          • ABI468 - Installation
          • ABI469 - Commissioning
          • ABI470 - Maintenance/service and repair
          • ABI471 - Special/further requirements
          • ABI569 - Decommissioning and disposal
        • ABV503 - OLOP
          • ABA003 - Operating LOP for flow measuring equipment
          • ABA026 - Operating LOP for pressure measuring equipment
          • ABE307 - Operating LOP for valve body assembly and process pressure regulator
          • ABE308 - Operating LOP for valve/actuator accessories
          • ABE309 - Operating LOP for actuator
          • ABE644 - Generic operating LOP for system components
          • ABE656 - Operating LOP for flow modification accessory
          • ABE727 - Operating LOP for level measuring equipment
          • ABF867 - Operating LOP for temperature measuring equipment
          • ABF868 - Operating LOP for density measuring equipment
        • ABV504 - DLOP
          • ABA005 - Device LOP for flow transmitter
          • ABA006 - Device LOP for coriolis mass flow transmitter
          • ABA007 - Device LOP for swirl flow transmitter
          • ABA008 - Device LOP for electromagnetic flow transmitter
          • ABA009 - Device LOP for electromagnetic insertion flow transmitter
          • ABA010 - Device LOP for orifice/differential pressure flow transmitter
          • ABA013 - Device LOP for (oval) gear flow transmitter/gauge
          • ABA014 - Device LOP for piston flow transmitter/gauge
          • ABA016 - Device LOP for thermal mass flow transmitter
          • ABA018 - Device LOP for turbine/propeller/Woltmann flow transmitter/gauge
          • ABA019 - Device LOP for ultrasonic flow transmitter
          • ABA020 - Device LOP for variable area flow transmitter/gauge
          • ABA022 - Device LOP for vortex flow transmitter
          • ABA023 - Device LOP for positive displacement flow transmitter/gauge
          • ABA024 - Device LOP for helix flow transmitter/gauge
          • ABA025 - Device LOP for remote/separate transmitter
          • ABA029 - Device LOP for absolute/gauge pressure transmitter
          • ABA031 - Device LOP for differential pressure transmitter
          • ABA032 - Device LOP for absolute/gauge pressure gauge
          • ABA034 - Device LOP for differential pressure gauge
          • ABA035 - Device LOP for remote seal
          • ABA037 - Device LOP for manifold
          • ABE310 - Device LOP for valve body assembly
          • ABE311 - Device LOP for globe valve
          • ABE312 - Device LOP for gate valve
          • ABE313 - Device LOP for diaphragm/pinch valve
          • ABE314 - Device LOP for butterfly valve
          • ABE315 - Device LOP for eccentric plug valve
          • ABE316 - Device LOP for plug valve
          • ABE317 - Device LOP for ball valve
          • ABE318 - Device LOP for pressure reducing regulator or back pressure/excess pressure regulator
          • ABE319 - Device LOP for pneumatic linear actuator
          • ABE320 - Device LOP for pneumatic rotary actuator
          • ABE321 - Device LOP for positioner
          • ABE630 - Device LOP for limit switch
          • ABE631 - Device LOP for solenoid valve
          • ABE632 - Device LOP for filter regulator
          • ABE633 - Device LOP for restriction orifice/diffuser
          • ABE634 - Device LOP for I/P converter
          • ABE728 - Device LOP for magnetic level gauge
          • ABE729 - Device LOP for sight level gauge
          • ABE730 - Device LOP for rotary paddle switch
          • ABE731 - Device LOP for thermal level switch
          • ABE732 - Device LOP for vibrating level switch
          • ABE733 - Device LOP for optical level switch
          • ABE735 - Device LOP for level transmitter
          • ABE736 - Device LOP for displacer level transmitter/switch
          • ABE737 - Device LOP for capacitance level transmitter/switch
          • ABE738 - Device LOP for conductance level transmitter/switch
          • ABE739 - Device LOP for float level transmitter/switch
          • ABE740 - Device LOP for hydrostatic pressure level transmitter
          • ABE741 - Device LOP for plumb bob level transmitter
          • ABE742 - Device LOP for free-space radar level transmitter
          • ABE743 - Device LOP for guided-wave radar level transmitter/switch
          • ABE744 - Device LOP for ultrasonic level transmitter
          • ABE745 - Device LOP for ultrasonic level switch
          • ABE746 - Device LOP for nuclear level transmitter/switch
          • ABE747 - Device LOP for laser level transmitter
          • ABE748 - Device LOP for servo level transmitter
          • ABE749 - Device LOP for microwave level switch
          • ABE750 - Device LOP for sight level indicator
          • ABE751 - Device LOP for stilling well
          • ABE752 - Device LOP for window
          • ABE753 - Device LOP for bypass/measuring chamber
          • ABE755 - Device LOP for level switch
          • ABE756 - Device LOP for separate level transmitter/switching unit
          • ABE759 - Device LOP for temperature gauge
          • ABE760 - Device LOP for contact temperature transmitter
          • ABE761 - Device LOP for radiation thermometer
          • ABE762 - Device LOP for temperature connection head
          • ABE763 - Device LOP for insert/element
          • ABE764 - Device LOP for separate temperature transmitter
          • ABE765 - Device LOP for thermowell
          • ABE766 - Device LOP for thermowell extension
          • ABE767 - Device LOP for temperature transmitter
          • ABF858 - Device LOP for buoyancy density transmitter
          • ABF859 - Device LOP for refractive index density transmitter
          • ABF860 - Device LOP for vibrating tube density transmitter
          • ABF861 - Device LOP for radiometric density transmitter
          • ABF862 - Device LOP for vibrating fork/rod density transmitter
          • ABF863 - Device LOP for ultrasonic density transmitter
          • ABF864 - Device LOP for microwave density transmitter
          • ABF865 - Device LOP for density transmitter
          • ABF866 - Device LOP for separate density transmitter
          • ABV520 - Device LOP for position transmitter
      • ABV501 - Block
        • ABA372 - Business partner
        • ABA379 - Identifier of business partner
        • ABA395 - E-mail
        • ABA396 - Attachment
        • ABA399 - Phone
        • ABA426 - Equipment
        • ABA436 - Fax
        • ABA441 - Device
        • ABC040 - Totalizer indicator [2]
        • ABC041 - Touch screen
        • ABC042 - Trace heating system
        • ABC043 - Transducer of an ultrasonic flow transmitter
        • ABC044 - Transmitter body [1]
        • ABC045 - Transmitter body [2]
        • ABC046 - Transmitter body [3]
        • ABC047 - Transmitter body [4]
        • ABC048 - Transmitter housing [1]
        • ABC049 - Transmitter housing [2]
        • ABC050 - Trimmer
        • ABC051 - Tube/pipe
        • ABC052 - Type of auxiliary input [1]
        • ABC053 - Type of auxiliary input [2]
        • ABC054 - Type of auxiliary input [3]
        • ABC055 - Type of auxiliary input [4]
        • ABC056 - Type of auxiliary input [5]
        • ABC057 - Absolute performance for actual volume flow
        • ABC058 - Absolute performance for density
        • ABC059 - Absolute performance for dynamic viscosity
        • ABC060 - Absolute performance for flow velocity
        • ABC061 - Absolute performance for mass flow
        • ABC062 - Absolute performance for normalized volume flow
        • ABC063 - Absolute performance for other variable
        • ABC064 - Absolute performance for pressure
        • ABC065 - Absolute performance for temperature
        • ABC066 - AC rating
        • ABC067 - Accuracy expressed as a percentage [1]
        • ABC068 - Accuracy expressed as a percentage [2]
        • ABC069 - Accuracy for a subrange of actual volume flow
        • ABC070 - Accuracy for a subrange of density
        • ABC071 - Accuracy for a subrange of dynamic viscosity
        • ABC072 - Accuracy for a subrange of flow velocity
        • ABC073 - Accuracy for a subrange of mass flow
        • ABC074 - Accuracy for a subrange of normalized volume flow
        • ABC075 - Accuracy for a subrange of other variable
        • ABC076 - Accuracy for a subrange of pressure
        • ABC077 - Accuracy for a subrange of span
        • ABC078 - Accuracy for a subrange of temperature
        • ABC079 - Actual volume flow measurement
        • ABC080 - Additional component
        • ABC081 - Adjustment
        • ABC082 - Ambient temperature
        • ABC083 - Analog current input [1]
        • ABC084 - Analog current input [2]
        • ABC085 - Analog current input parameters
        • ABC086 - Analog current output [1]
        • ABC087 - Analog current output [2]
        • ABC088 - Analog current output [3]
        • ABC089 - Analog current output [4]
        • ABC090 - Analog current output [5]
        • ABC091 - Analog current output parameters
        • ABC092 - Analog voltage input [1]
        • ABC093 - Analog voltage input [2]
        • ABC094 - Analog voltage input parameters
        • ABC095 - Analog voltage output [1]
        • ABC096 - Analog voltage output [2]
        • ABC097 - Analog voltage output [3]
        • ABC098 - Analog voltage output [4]
        • ABC099 - Analog voltage output parameters
        • ABC100 - Application
        • ABC101 - Approval for general usage
        • ABC102 - Approval for use in special applications
        • ABC103 - Aqueous phase
        • ABC104 - Area classification
        • ABC105 - Assigned actual volume flow range
        • ABC106 - Assigned actual volume pulse value
        • ABC107 - Assigned density range
        • ABC108 - Assigned dynamic viscosity range
        • ABC109 - Assigned mass flow range
        • ABC110 - Assigned mass pulse value
        • ABC111 - Assigned normalized volume flow range
        • ABC112 - Assigned normalized volume pulse value
        • ABC113 - Assigned other variable pulse value
        • ABC114 - Assigned other variable range
        • ABC115 - Assigned pressure range
        • ABC116 - Assigned temperature range
        • ABC117 - Assigned totalized value range for mass and for volume
        • ABC118 - Assigned variable [1]
        • ABC119 - Assigned variable [2]
        • ABC120 - Assigned variable [3]
        • ABC121 - Assigned variable [4]
        • ABC122 - Assigned variable [5]
        • ABC123 - Assigned variable [6]
        • ABC124 - Assigned variable [7]
        • ABC125 - Audible controls
        • ABC126 - Auxiliary input [1]
        • ABC127 - Auxiliary input [2]
        • ABC128 - Auxiliary input [3]
        • ABC129 - Auxiliary input [4]
        • ABC130 - Auxiliary input [5]
        • ABC131 - Auxiliary input [6]
        • ABC132 - Auxiliary input [7]
        • ABC133 - Auxiliary input [8]
        • ABC134 - Auxiliary input [9]
        • ABC135 - Available power supply
        • ABC136 - Base conditions
        • ABC137 - Basic Configuration
        • ABC138 - Battery
        • ABC139 - Baud rate setting
        • ABC140 - Binary current output
        • ABC141 - Binary electronic output
        • ABC142 - Binary input
        • ABC143 - Binary input IEC 60947-5-6 (NAMUR)
        • ABC144 - Binary isolated output
        • ABC145 - Binary output IEC 60947-5-6 (NAMUR)
        • ABC146 - Binary pneumatic/hydraulic output
        • ABC148 - Cable specification
        • ABC149 - Cable/conduit entry
        • ABC150 - Calculated maximum electrical parameters for connected device
        • ABC151 - Calculation certificate
        • ABC152 - Calibration certificate
        • ABC153 - Capillary
        • ABC154 - Capsule/probe remote seal
        • ABC155 - Case
        • ABC156 - Certificates and approvals
        • ABC157 - Clamp-on ultrasonic flowmeter
        • ABC158 - CNG approval
        • ABC159 - Codes and standards approval [1]
        • ABC160 - Codes and standards approval [2]
        • ABC161 - Communication interface configuration function
        • ABC162 - Communication protocol
        • ABC163 - Communication variable
        • ABC164 - Component part
        • ABC165 - Component part identifications
        • ABC166 - Computer
        • ABC167 - Configurable display mode
        • ABC168 - Configuration of a manufacturer-specific binary signal
        • ABC169 - Conformance test
        • ABC170 - Connecting cable
        • ABC171 - Connection compartment
        • ABC172 - Connection facility [1]
        • ABC173 - Connection facility [2]
        • ABC174 - Connection head
        • ABC175 - Connector
        • ABC176 - Current signal on alarm
        • ABC177 - Custody transfer approval
        • ABC178 - Data logging
        • ABC179 - DC rating
        • ABC180 - Density measurement
        • ABC181 - Dependability
        • ABC182 - Deployment conditions [1]
        • ABC183 - Deployment conditions [2]
        • ABC184 - Deployment design conditions [1]
        • ABC185 - Deployment design conditions [2]
        • ABC186 - Design conditions for external cleaning in place
        • ABC187 - Design conditions for internal cleaning in place
        • ABC188 - Design deratings
        • ABC189 - Device diagnostic
        • ABC190 - Device groups and categories
        • ABC191 - Device integration
        • ABC192 - Device pipe tap
        • ABC193 - Device tag plate
        • ABC194 - Diagnosis
        • ABC195 - Dial indicator
        • ABC196 - Diaphragm
        • ABC197 - Diaphragm element
        • ABC198 - Extended diaphragm seal
        • ABC199 - Differential pressure process case variables
        • ABC200 - Digital communication
        • ABC201 - Digital communication interface
        • ABC202 - Digital indicator
        • ABC203 - DIP switch
        • ABC204 - Keypad display
        • ABC205 - Display
        • ABC206 - Display element
        • ABC207 - Display of a digital indicator
        • ABC208 - Displayed variable
        • ABC209 - Displayed variable of an indicator
        • ABC210 - Dynamic behaviour
        • ABC211 - Dynamic viscosity measurement
        • ABC212 - Electrical data for active behaviour
        • ABC213 - Electrical data for passive behaviour
        • ABC214 - Electrical data of a bus powered device
        • ABC215 - Electrical line power supply
        • ABC216 - Electrical loop power supply
        • ABC217 - Electrical parameters of power supply
        • ABC218 - Electrical power input circuit
        • ABC219 - Electrical power output circuit
        • ABC220 - Electrical terminal
        • ABC221 - Electrical wiring data
        • ABC222 - Electromagnetic compatibility
        • ABC223 - Electromechanical contact parameters
        • ABC226 - Process connection of trace heating system
        • ABC227 - Process connection of pressure relief of secondary housing
        • ABC228 - Environmental design conditions
        • ABC229 - Environmental design ratings
        • ABC230 - Environmental protection approval
        • ABC231 - Equipotential bonding connection
        • ABC232 - Explosion protection design approval
        • ABC233 - Explosion protection device parameters for nonincendive installation
        • ABC235 - Explosion protection parameters for intrinsic safety
        • ABC236 - Explosion protection parameters for intrinsic safety (active)
        • ABC237 - Explosion protection parameters for intrinsic safety (passive)
        • ABC238 - Explosion protection permissible temperature
        • ABC239 - External cleaning in place conditions
        • ABC240 - Field coils
        • ABC241 - Fieldbus certificate
        • ABC242 - Fieldbus parameters
        • ABC243 - Fixed electromagnetic insertion flow transmitter
        • ABC244 - Flow nozzle
        • ABC245 - Flow tube of an electromagnetic flow transmitter
        • ABC246 - Flowtube assembly
        • ABC247 - Frequency input [1]
        • ABC248 - Frequency input [2]
        • ABC249 - Frequency input/output parameters
        • ABC250 - Frequency output [1]
        • ABC251 - Frequency output [2]
        • ABC252 - Frequency output [3]
        • ABC253 - Frequency output [4]
        • ABC254 - Frequency signal on alarm
        • ABC255 - Function and system design
        • ABC256 - Function block
        • ABC257 - Functional safety and reliability
        • ABC258 - Functional safety approval
        • ABC259 - Further reference condition
        • ABC260 - Further security measure
        • ABC261 - Galvanic isolation
        • ABC262 - Grounding electrode
        • ABC263 - Handheld
        • ABC264 - Hardware configuration elements
        • ABC265 - Hazardous area approval
        • ABC266 - High/single pressure side line or nozzle
        • ABC267 - High/single pressure side operating conditions for device design
        • ABC268 - High/single pressure side process case variables
        • ABC269 - Identification
        • ABC270 - Impulse line
        • ABC271 - Indicated condition
        • ABC272 - Scale range
        • ABC273 - Indication style
        • ABC274 - Influence of ambient temperature at selected test point
        • ABC275 - Influence of electromagnetic interference
        • ABC276 - Influence of external quantities expressed as a percentage
        • ABC277 - Influence of external quantities expressed as a percentage for pressure
        • ABC278 - Influence of external quantities expressed for dynamic viscosity
        • ABC279 - Influence of external quantities expressed for mass flow
        • ABC280 - Influence of external quantities expressed for flow velocity
        • ABC281 - Influence of external quantities expressed for volume flow
        • ABC282 - Influence of external quantities expressed for density
        • ABC283 - Influence of external quantities expressed for other variable
        • ABC284 - Influence of humidity at selected test point
        • ABC285 - Influence of process pressure at selected test point
        • ABC286 - Influence of process temperature at selected test point
        • ABC287 - Inline remote seal
        • ABC288 - Inline thermal mass flow transmitter
        • ABC289 - Inline ultrasonic flowmeter
        • ABC290 - Input [1]
        • ABC291 - Input [2]
        • ABC292 - Input [3]
        • ABC293 - Input [4]
        • ABC294 - Input [5]
        • ABC295 - Input [6]
        • ABC296 - Input [7]
        • ABC297 - Input [8]
        • ABC298 - Input [9]
        • ABC299 - Input [10]
        • ABC300 - Input signal processing
        • ABC301 - Insertion thermal mass flow transmitter
        • ABC302 - Insertion ultrasonic flowmeter
        • ABC303 - Installation conditions [1]
        • ABC304 - Installation conditions [2]
        • ABC305 - Installation conditions [3]
        • ABC306 - Installation design conditions [1]
        • ABC307 - Installation design conditions [2]
        • ABC308 - Internal cleaning in place conditions
        • ABC309 - Jumper
        • ABC310 - Key/button
        • ABC311 - Keypad
        • ABC312 - Keypad/buttons and display
        • ABC313 - LED indicator
        • ABC314 - Limiting conditions for differential pressure measurement
        • ABC315 - Limiting environmental conditions
        • ABC316 - Limiting environmental design conditions
        • ABC317 - Limiting flow conditions
        • ABC318 - Limiting process conditions [1]
        • ABC319 - Limiting process conditions [2]
        • ABC320 - Limiting process conditions [3]
        • ABC321 - Line monitoring
        • ABC322 - Line or nozzle
        • ABC323 - Liquid phase
        • ABC324 - Long-term behaviour
        • ABC325 - Low pressure side line or nozzle
        • ABC326 - Low pressure side operating conditions for device design
        • ABC327 - Low pressure side process case variables
        • ABC328 - LPG approval
        • ABC329 - Manual controls
        • ABC330 - Manufacturer identification
        • ABC331 - Manufacturer-specific input [1]
        • ABC332 - Manufacturer-specific input [2]
        • ABC333 - Manufacturer-specific output [1]
        • ABC334 - Manufacturer-specific output [2]
        • ABC335 - Manufacturer-specific parameters
        • ABC336 - Marine type approval
        • ABC337 - Mass flow measurement
        • ABC338 - Material of additional inner part
        • ABC339 - Material of additional wetted part
        • ABC340 - Material of ball valve
        • ABC341 - Material of ball/needle
        • ABC342 - Material of bearing
        • ABC343 - Material of bearing axle
        • ABC344 - Material of bearing bush
        • ABC345 - Material of bluff body
        • ABC346 - Material of body
        • ABC347 - Material of body/lower housing
        • ABC348 - Material of body/upper housing
        • ABC349 - Material of bolting
        • ABC350 - Material of bonnet
        • ABC351 - Material of centering or dowel pins
        • ABC352 - Material of clamp
        • ABC353 - Material of construction
        • ABC354 - Material of diaphragm
        • ABC355 - Material of displacement element
        • ABC356 - Material of electrodes
        • ABC357 - Material of extension
        • ABC358 - Material of external coating
        • ABC359 - Material of fastening
        • ABC360 - Material of flange adapter
        • ABC361 - Material of flange or fitting
        • ABC362 - Material of float element
        • ABC363 - Material of flow nozzle
        • ABC364 - Material of flow straightener
        • ABC365 - Material of flow tube probe seal
        • ABC366 - Material of grounding electrode
        • ABC367 - Material of holder
        • ABC368 - Material of hot tap lower tube section
        • ABC369 - Material of hot tap seal
        • ABC370 - Material of hot tap upper tube section
        • ABC371 - Material of insertion probe seal
        • ABC372 - Material of jack screw
        • ABC373 - Material of manifold block
        • ABC374 - Material of measuring tube
        • ABC375 - Material of mounting assembly
        • ABC376 - Material of mounting bracket
        • ABC377 - Material of mounting kit
        • ABC378 - Material of orifice plate
        • ABC379 - Material of oval adapter
        • ABC380 - Material of pipeline
        • ABC381 - Material of pressure bearing bolting
        • ABC382 - Material of pressure gauge stem
        • ABC383 - Material of probe head
        • ABC384 - Material of probe rod
        • ABC385 - Material of protective tube
        • ABC386 - Material of ring
        • ABC387 - Material of sealing bellow
        • ABC388 - Material of seat
        • ABC389 - Material of sensing element
        • ABC390 - Material of sensor
        • ABC391 - Material of sensor head housing
        • ABC392 - Material of sensor holder
        • ABC393 - Material of separating/measuring diaphragm
        • ABC394 - Material of shaft
        • ABC395 - Material of siphon
        • ABC396 - Material of stem
        • ABC397 - Material of trim
        • ABC398 - Material of turbine rotor
        • ABC399 - Material of turbine rotor shaft
        • ABC400 - Material of ultrasonic flow sensor head
        • ABC401 - Material of vent/drain
        • ABC403 - Material of wetted inner seal
        • ABC404 - Material test certificate
        • ABC407 - Measured variable [1]
        • ABC408 - Measured variable [2]
        • ABC409 - Measured variable [3]
        • ABC410 - Measured variable [4]
        • ABC411 - Pressure measurement instrument installation
        • ABC412 - Flow measuring chamber
        • ABC413 - Material of measuring chamber
        • ABC414 - Measuring range for actual volume flow
        • ABC415 - Measuring range for density
        • ABC416 - Measuring range for dynamic viscosity
        • ABC417 - Measuring range for mass flow
        • ABC418 - Measuring range for normalized volume flow
        • ABC419 - Measuring range for other variable
        • ABC420 - Measuring range for pressure
        • ABC421 - Measuring range for temperature
        • ABC422 - Mechanical and electrical construction [flow transmitter]
        • ABC423 - Mechanical and electrical construction [coriolis mass flow transmitter]
        • ABC424 - Mechanical and electrical construction [swirl flow transmitter]
        • ABC425 - Mechanical and electrical construction [electromagnetic flow transmitter]
        • ABC426 - Mechanical and electrical construction [electromagnetic insertion flow transmitter]
        • ABC427 - Mechanical and electrical construction [orifice/differential pressure flow transmitter]
        • ABC428 - Mechanical and electrical construction [(oval) gear flow transmitter/gauge]
        • ABC429 - Mechanical and electrical construction [piston flow transmitter/gauge]
        • ABC430 - Mechanical and electrical construction [thermal mass flow transmitter]
        • ABC431 - Mechanical and electrical construction [rotating element flow transmitter/gauge]
        • ABC432 - Mechanical and electrical construction [ultrasonic flow transmitter]
        • ABC433 - Mechanical and electrical construction [variable area flow transmitter/gauge]
        • ABC434 - Mechanical and electrical construction [vortex flow transmitter]
        • ABC435 - Mechanical and electrical construction [positive displacement flow transmitter/gauge]
        • ABC436 - Mechanical and electrical construction [helix flow transmitter/gauge]
        • ABC437 - Mechanical and electrical construction [remote/separate transmitter]
        • ABC438 - Mechanical and electrical construction [absolute/gauge pressure transmitter]
        • ABC439 - Mechanical and electrical construction [differential pressure transmitter]
        • ABC440 - Mechanical and electrical construction [absolute/gauge pressure gauge]
        • ABC441 - Mechanical and electrical construction [differential pressure gauge]
        • ABC442 - Mechanical and electrical construction [remote seal]
        • ABC443 - Mechanical and electrical construction [manifold]
        • ABC444 - Mechanical totalizer
        • ABC445 - Meter run
        • ABC446 - Drag pointer
        • ABC447 - Non-aqueous liquid phase
        • ABC448 - Nonincendive field-wiring parameters
        • ABC449 - Normal environmental conditions
        • ABC450 - Normal environmental design conditions
        • ABC451 - Normal process conditions [1]
        • ABC452 - Normal process conditions [2]
        • ABC453 - Normal process conditions [3]
        • ABC454 - Normal process design conditions [1]
        • ABC455 - Normal process design conditions [2]
        • ABC456 - Normalized volume flow measurement
        • ABC458 - Operability
        • ABC459 - Operating conditions for device design
        • ABC460 - Operating conditions for device design [pressure]
        • ABC461 - Operation
        • ABC462 - Optical communication interface
        • ABC463 - Orifice assembly
        • ABC464 - Orifice flange or fitting
        • ABC465 - Orifice plate and holder
        • ABC466 - Other certificate
        • ABC467 - Other controls
        • ABC468 - Other hardware configuration element
        • ABC469 - Other material properties
        • ABC470 - Other operating element
        • ABC471 - Other operating pressure instrument design conditions
        • ABC472 - Other process case variable
        • ABC473 - Other software function
        • ABC474 - Other standards approval
        • ABC475 - Other variable
        • ABC476 - Output [1]
        • ABC477 - Output [2]
        • ABC478 - Output [3]
        • ABC479 - Output [4]
        • ABC480 - Output [5]
        • ABC481 - Output [6]
        • ABC482 - Output [7]
        • ABC484 - Overall dimensions and weight
        • ABC485 - Overfill prevention protection approval
        • ABC486 - Parameters of a manufacturer-specific analog pulse/frequency signal
        • ABC487 - Parameters of a manufacturer-specific pulse/frequency binary signal
        • ABC488 - Parametrization
        • ABC489 - Percentage performance
        • ABC490 - Percentage performance for pressure
        • ABC491 - Performance [1]
        • ABC492 - Performance [2]
        • ABC493 - Performance [3]
        • ABC494 - Performance [4]
        • ABC495 - Performance [5]
        • ABC496 - Performance [6]
        • ABC497 - Performance [7]
        • ABC498 - Performance [8]
        • ABC499 - Performance [9]
        • ABC500 - Performance of differential pressure transmitter
        • ABC501 - Performance of indicator
        • ABC502 - Performance of remote seal
        • ABC503 - Performance variable [1]
        • ABC504 - Performance variable [2]
        • ABC505 - Performance variable [3]
        • ABC506 - Performance variable [4]
        • ABC507 - Performance variable [5]
        • ABC508 - Performance variable [6]
        • ABC509 - Phase [pressure]
        • ABC510 - Phase [flow]
        • ABC511 - Physical layer
        • ABC512 - Physical location
        • ABC513 - Pneumatic/hydraulic connection
        • ABC514 - Pneumatic/hydraulic input
        • ABC515 - Pneumatic/hydraulic input/output parameters
        • ABC516 - Pneumatic/hydraulic output [1]
        • ABC517 - Pneumatic/hydraulic output [2]
        • ABC518 - Pneumatic/hydraulic output [3]
        • ABC519 - Pneumatic/hydraulic supply [1]
        • ABC520 - Pneumatic/hydraulic supply [2]
        • ABC521 - Potable water approval
        • ABC522 - Potential matching
        • ABC523 - Power supply [1]
        • ABC524 - Power supply [2]
        • ABC525 - Pressure equipment directive
        • ABC526 - Pressure gauge sensing element and movement
        • ABC527 - Pressure gauge siphon
        • ABC528 - Pressure measurement
        • ABC529 - Pressure tap of an orifice assembly
        • ABC530 - Pressure taps of a flow nozzle
        • ABC531 - Pressure test approval
        • ABC532 - Pressure-temperature design conditions
        • ABC533 - Pressure-temperature design ratings
        • ABC534 - Process case [flow]
        • ABC535 - Process case [pressure]
        • ABC536 - Process case variables [pressure]
        • ABC537 - Process case variables [flow]
        • ABC538 - Process criticality classification
        • ABC539 - Process design conditions [pressure]
        • ABC540 - Process design conditions [flow]
        • ABC541 - Process design ratings [1]
        • ABC542 - Process design ratings [2]
        • ABC543 - Process design ratings [3]
        • ABC544 - Process design ratings [4]
        • ABC545 - Process diagnostic
        • ABC546 - Process equipment
        • ABC547 - Process equipment [pressure]
        • ABC548 - Process material component
        • ABC549 - Process side material of remote seal
        • ABC550 - Pulse generator
        • ABC551 - Pulse input
        • ABC552 - Pulse input/output parameters
        • ABC553 - Pulse output
        • ABC554 - Pulse signal on alarm
        • ABC555 - Pulse/frequency input/output parameters
        • ABC556 - Quality certificate
        • ABC557 - Rated Operating Conditions [1]
        • ABC558 - Rated Operating Conditions [2]
        • ABC559 - Rated Operating Conditions [3]
        • ABC560 - Rated Operating Conditions [4]
        • ABC561 - Rated Operating Conditions [5]
        • ABC562 - Rated Operating Conditions [6]
        • ABC563 - Reference ambient conditions
        • ABC564 - Reference conditions for the performance variable [1]
        • ABC569 - Reference conditions for the performance variable [2]
        • ABC570 - Reference conditions of the device [1]
        • ABC571 - Reference conditions of the device [2]
        • ABC572 - Reference device conditions
        • ABC573 - Reference electrode
        • ABC574 - Reference process conditions
        • ABC575 - Remote configuration
        • ABC576 - Remote configuration tool
        • ABC577 - Remote seal fill fluid
        • ABC578 - Reset parameter
        • ABC579 - RTD input
        • ABC580 - RTD/thermocouple input
        • ABC581 - Restricted electrical parameters
        • ABC582 - Retractable electromagnetic insertion flow transmitter
        • ABC583 - Retractable thermal mass flow transmitter
        • ABC584 - Rotary switch position
        • ABC585 - Safety related properties for active behaviour
        • ABC586 - Safety related properties for passive behaviour
        • ABC587 - Sanitary approval
        • ABC588 - Secondary containment
        • ABC590 - Sensor of a thermal mass flow transmitter
        • ABC591 - Set pointer
        • ABC592 - Signal configuration function
        • ABC594 - Signal function
        • ABC595 - Signal on alarm
        • ABC596 - Software configuration functions
        • ABC597 - Solid/particle phase [pressure]
        • ABC598 - Solid/particle phase [flow]
        • ABC599 - Sour gas approval
        • ABC600 - Special procedure
        • ABC601 - Special regulation
        • ABC602 - Start-up conditions
        • ABC603 - Structural design [flow transmitter]
        • ABC604 - Structural design [coriolis mass flow transmitter]
        • ABC605 - Structural design [swirl flow transmitter]
        • ABC606 - Structural design [electromagnetic flow transmitter]
        • ABC607 - Structural design [electromagnetic insertion flow transmitter]
        • ABC608 - Structural design [orifice/differential pressure flow transmitter]
        • ABC609 - Structural design [(oval) gear flow transmitter/gauge]
        • ABC610 - Structural design [piston flow transmitter/gauge]
        • ABC611 - Structural design [thermal mass flow transmitter]
        • ABC612 - Structural design [rotating element flow transmitter/gauge]
        • ABC613 - Structural design [ultrasonic flow transmitter]
        • ABC614 - Structural design [variable area flow transmitter/gauge]
        • ABC615 - Structural design [vortex flow transmitter]
        • ABC616 - Structural design [positive displacement flow transmitter/gauge]
        • ABC617 - Structural design [helix flow transmitter/gauge]
        • ABC618 - Structural design [remote/separate transmitter]
        • ABC619 - Structural design [absolute/gauge pressure transmitter]
        • ABC620 - Structural design [differential pressure transmitter]
        • ABC621 - Structural design [absolute/gauge pressure gauge]
        • ABC622 - Structural design [differential pressure gauge]
        • ABC623 - Structural design [remote seal]
        • ABC624 - Structural design [manifold]
        • ABC625 - Structural design of a differential pressure gauge
        • ABC626 - Structural design of a differential pressure transmitter
        • ABC627 - Structural design of a helix flow transmitter or gauge
        • ABC628 - Structural design of a positive displacement flow transmitter or gauge
        • ABC629 - Structural design of a pressure or differential pressure gauge
        • ABC630 - Structural design of a remote seal [1]
        • ABC631 - Structural design of a remote seal [2]
        • ABC632 - Structural design of a piston flow transmitter or gauge
        • ABC633 - Structural design of a rotating element flow transmitter or gauge
        • ABC634 - Structural design of a swirl flow transmitter
        • ABC635 - Structural design of a thermal mass flow transmitter
        • ABC637 - Structural design of a valve manifold
        • ABC638 - Structural design of a variable area flow transmitter or gauge
        • ABC639 - Structural design of a vortex flow transmitter
        • ABC640 - Structural design of an (oval) gear flow transmitter or gauge
        • ABC641 - Structural design of an absolute or a gauge pressure transmitter
        • ABC642 - Structural design of an electromagnetic flow transmitter
        • ABC643 - Structural design of an electromagnetic insertion flow transmitter
        • ABC644 - Structural design of an ultrasonic flow transmitter
        • ABC645 - Structural design of the primary element of a differential pressure flow transmitter
        • ABC646 - Style of parametrization
        • ABC647 - Subfunction of DIP switch
        • ABC648 - Switch
        • ABC649 - Telecommunication compliance
        • ABC650 - Temperature measurement
        • ABC651 - Text line of tag plate
        • ABC652 - Thermocouple input
        • ABC653 - Total fluid [pressure]
        • ABC654 - Total fluid [flow]
        • ABC655 - Totalizer indicator [1]
        • ABC656 - Type of auxiliary input [6]
        • ABC657 - Type of auxiliary input [7]
        • ABC658 - Type of auxiliary input [8]
        • ABC659 - Type of auxiliary input [9]
        • ABC660 - Type of measured variable [1]
        • ABC661 - Type of measured variable [2]
        • ABC662 - Type of measured variable [3]
        • ABC663 - Type of measured variable [4]
        • ABC664 - Type of output [1]
        • ABC665 - Type of output [2]
        • ABC666 - Type of output [3]
        • ABC667 - Type of output [4]
        • ABC668 - Type of output [5]
        • ABC669 - Type of output [6]
        • ABC670 - Type of output [7]
        • ABC671 - Type of performance variable [1]
        • ABC672 - Type of performance variable [2]
        • ABC673 - Type of performance variable [3]
        • ABC674 - Type of performance variable [4]
        • ABC675 - Type of performance variable [5]
        • ABC676 - Type of performance variable [6]
        • ABC677 - Valve
        • ABC679 - Gas/vapor phase [pressure]
        • ABC680 - Gas/vapor phase [flow]
        • ABC681 - Vent/Drain holes
        • ABC682 - Visual controls
        • ABC683 - Voltage signal on alarm
        • ABC684 - Wetted material of measuring cell
        • ABC685 - Wired communication interface
        • ABC686 - Wireless communication interface
        • ABD391 - Material of case
        • ABD397 - Vibration test condition
        • ABD411 - Purge gas supply
        • ABD468 - Measuring range for flow velocity
        • ABD471 - Dial
        • ABD472 - Pointer
        • ABD476 - Contacts
        • ABD480 - Dial indicator [2]
        • ABD482 - Dial [2]
        • ABD484 - Reference conditions of the device [3]
        • ABD486 - Reference ambient conditions [1]
        • ABD488 - Flow velocity measurement
        • ABD493 - Assigned flow velocity range
        • ABD499 - Reference process conditions [1]
        • ABD501 - Influence of external quantities expressed for pressure
        • ABD503 - Influence of external quantities expressed for temperature
        • ABD505 - Deployment conditions [3]
        • ABD507 - Installation conditions [4]
        • ABD509 - Normal environmental conditions [1]
        • ABD511 - Environmental design ratings [1]
        • ABD514 - Rated Operating Conditions [7]
        • ABD516 - Rated Operating Conditions [8]
        • ABD518 - Deployment conditions [4]
        • ABD520 - Installation conditions [5]
        • ABD522 - Power supply [3]
        • ABD528 - Manufacturer-specific output [3]
        • ABD530 - Manufacturer-specific output [4]
        • ABD533 - Overall dimensions and weight [1]
        • ABD796 - Actuator
        • ABD799 - Analog current input [3]
        • ABD800 - Analog current output [6]
        • ABD801 - Analog voltage input [3]
        • ABD802 - Analog voltage output [5]
        • ABD803 - Angular limit stop
        • ABD804 - Approval for use in special applications [2]
        • ABD806 - Control input
        • ABD807 - Available power supply [2]
        • ABD808 - Base conditions [2]
        • ABD811 - Body of actuator
        • ABD812 - Body of valve [2]
        • ABD813 - Body of valve [3]
        • ABD814 - Body of valve [1]
        • ABD815 - Bonnet
        • ABD816 - Calculation results of control devices
        • ABD817 - Certificates and approvals [2]
        • ABD818 - Certificates and approvals [3]
        • ABD819 - Codes and standards approval [3]
        • ABD824 - Installation conditions [6]
        • ABD827 - Limiting environmental conditions [2]
        • ABD829 - Limiting process conditions [4]
        • ABD831 - Line or nozzle [2]
        • ABD832 - Linear limit stop
        • ABD833 - Liquid phase [valves]
        • ABD835 - Manual override [2]
        • ABD840 - Dependability [2]
        • ABD841 - Deployment conditions [5]
        • ABD842 - Deployment design conditions [3]
        • ABD843 - Design conditions for actuators
        • ABD844 - Design conditions for valve body assembly
        • ABD848 - Dial indicator [3]
        • ABD850 - Digital indicator [2]
        • ABD858 - Electrical line power supply [2]
        • ABD863 - End connection
        • ABD864 - End connection of trace heating system
        • ABD865 - Environmental design conditions [3]
        • ABD866 - Environmental design conditions [2]
        • ABD867 - Environmental design ratings [2]
        • ABD868 - Explosion protection design approval [2]
        • ABD875 - Frequency output [5]
        • ABD877 - Functional safety and reliability [2]
        • ABD881 - Gas phase [valves]
        • ABD882 - Gasket of body
        • ABD885 - Identification [2]
        • ABD890 - Influence of external quantities expressed as a percentage [2]
        • ABD894 - Input [11]
        • ABD895 - Input signal processing [2]
        • ABD896 - Installation conditions [7]
        • ABD897 - Installation conditions [8]
        • ABD898 - Manufacturer-specific input [3]
        • ABD899 - Manufacturer-specific output [5]
        • ABD900 - Material of ball
        • ABD901 - Material of bellow
        • ABD902 - Material of bonnet [2]
        • ABD903 - Material of bushing
        • ABD904 - Material of cage
        • ABD906 - Material of disc
        • ABD907 - Material of disc sealing edge
        • ABD908 - Material of gasket
        • ABD909 - Material of lower shaft bearing
        • ABD910 - Material of measures for noise-reduction
        • ABD911 - Material of plug
        • ABD912 - Material of plug sealing edge
        • ABD913 - Material of restrictor
        • ABD914 - Material of sealing strip
        • ABD915 - Material of seat
        • ABD916 - Material of seat retainer
        • ABD917 - Material of seat sealing edge
        • ABD918 - Material of seat spring
        • ABD919 - Material of shaft
        • ABD920 - Material of steam jacket
        • ABD921 - Material of stem/shaft
        • ABD922 - Material of taper
        • ABD923 - Material of taper sealing edge
        • ABD924 - Material of taper-bar
        • ABD925 - Material of trunnion shaft
        • ABD926 - Material of upper shaft bearing
        • ABD927 - Material of wedge
        • ABD928 - Material of wedge sealing edge
        • ABD929 - Mechanical and electrical construction [globe valve]
        • ABD930 - Mechanical and electrical construction [ball valve]
        • ABD931 - Mechanical and electrical construction [pressure reducing regulator or back pressure/excess pressure regulator]
        • ABD932 - Mechanical and electrical construction [positioner]
        • ABD933 - Mechanical and electrical construction [butterfly valve]
        • ABD934 - Mechanical and electrical construction [pneumatic rotary actuator]
        • ABD935 - Mechanical and electrical construction [plug valve]
        • ABD936 - Mechanical and electrical construction [diaphragm/pinch valve]
        • ABD937 - Mechanical and electrical construction [eccentric plug valve]
        • ABD938 - Mechanical and electrical construction [pneumatic linear actuator]
        • ABD939 - Mechanical and electrical construction [gate valve]
        • ABD940 - Mechanical and electrical construction [valve body assembly]
        • ABD941 - Mounting bracket for actuator
        • ABD942 - Mounting bracket for signal devices
        • ABD944 - Normal environmental conditions [2]
        • ABD945 - Normal environmental design conditions [3]
        • ABD946 - Normal environmental design conditions [2]
        • ABD947 - Normal process conditions [4]
        • ABD948 - Normal process design conditions [3]
        • ABD949 - Operating conditions for device design [3]
        • ABD950 - Operating conditions for device design [2]
        • ABD951 - Operating conditions for device design [4]
        • ABD953 - O-ring
        • ABD955 - Other process material properties [2]
        • ABD957 - Output [8]
        • ABD961 - Parameters of pneumatic linear actuator
        • ABD962 - Parameters of pneumatic rotary actuator
        • ABD963 - Parameters of positioner
        • ABD964 - Parameters of valve body assembly [4]
        • ABD965 - Parameters of valve body assembly [1]
        • ABD966 - Parameters of valve body assembly [2]
        • ABD967 - Parameters of valve body assembly [3]
        • ABD969 - Partial stroke test
        • ABD970 - Percentage performance [2]
        • ABD971 - Performance [12]
        • ABD973 - Performance [10]
        • ABD974 - Performance variable [7]
        • ABD976 - Physical location [2]
        • ABD977 - Physical location [3]
        • ABD979 - Pneumatic/hydraulic output [4]
        • ABD980 - Pneumatic/hydraulic output for positioner
        • ABD981 - Pneumatic/hydraulic output parameters for positioner
        • ABD983 - Power supply [4]
        • ABD984 - Pressure equipment directive [2]
        • ABD985 - Pressure-temperature design conditions [2]
        • ABD986 - Pressure-temperature design ratings [2]
        • ABD987 - Process case [valves]
        • ABD988 - Process conditions at the inlet
        • ABD989 - Process conditions at the outlet
        • ABD990 - Process conditions for final control elements
        • ABD991 - Process design conditions [valves]
        • ABD992 - Process design ratings [5]
        • ABD994 - Process equipment [2]
        • ABD995 - Process material component [2]
        • ABD998 - Rated Operating Conditions [9]
        • ABD999 - Rated Operating Conditions [10]
        • ABE000 - Rated Operating Conditions [11]
        • ABE001 - Reference conditions for the performance variable [3]
        • ABE002 - Reference conditions of the device [4]
        • ABE008 - Seat
        • ABE009 - material of seat ring
        • ABE010 - Shaft end
        • ABE013 - Steam jacket
        • ABE014 - Structural design [globe valve]
        • ABE015 - Structural design [plug valve]
        • ABE016 - Structural design [diaphragm/pinch valve]
        • ABE017 - Structural design [pneumatic linear actuator]
        • ABE018 - Structural design [valve body assembly]
        • ABE019 - Structural design [pressure reducing regulator or back pressure/excess pressure regulator]
        • ABE020 - Structural design [gate valve]
        • ABE021 - Structural design [butterfly valve]
        • ABE022 - Structural design [ball valve]
        • ABE023 - Structural design [positioner]
        • ABE024 - Structural design [pneumatic rotary actuator]
        • ABE025 - Structural design [eccentric plug valve]
        • ABE026 - Structural design of a ball valve
        • ABE027 - Structural design of a butterfly valve
        • ABE028 - Structural design of a diaphragm/pinch valve
        • ABE029 - Structural design of a gate valve
        • ABE030 - Structural design of a globe valve
        • ABE031 - Structural design of a plug valve
        • ABE032 - Structural design of a pneumatic linear actuator
        • ABE033 - Structural design of a pneumatic rotary actuator
        • ABE034 - Structural design of a positioner
        • ABE035 - Structural design of a pressure reducing regulator or back pressure/excess pressure regulator
        • ABE036 - Structural design of an eccentric plug valve
        • ABE038 - Test criterium for functional safety
        • ABE039 - Trace heating system [2]
        • ABE040 - Transmitter housing [3]
        • ABE042 - Type of output [8]
        • ABE043 - Type of performance variable [7]
        • ABE044 - Valve body assembly
        • ABE045 - Vapor phase [valves]
        • ABE326 - Type of control input
        • ABE328 - Installation design conditions [3]
        • ABE365 - Accuracy expressed as a percentage [3]
        • ABE367 - Normal environmental conditions [4]
        • ABE369 - Environmental design ratings [4]
        • ABE371 - Normal environmental conditions [3]
        • ABE373 - Environmental design ratings [3]
        • ABE387 - Material of guide bushing
        • ABE389 - Material of guide
        • ABE391 - Overall dimensions and weight [2]
        • ABE393 - Auxiliary input [11]
        • ABE395 - Type of auxiliary input [11]
        • ABE398 - Dynamic behaviour [2]
        • ABE403 - Closure member
        • ABE405 - Surface treatment
        • ABE407 - Surface treatment of sealing edge
        • ABE409 - Stem/shaft
        • ABE411 - Stem/shaft packing
        • ABE413 - Material of closure member
        • ABE415 - Material of surface coating
        • ABE417 - Material of retainer
        • ABE421 - Material of casing
        • ABE436 - Force by actuation fluid pressure
        • ABE439 - Torque by actuation fluid pressure
        • ABE441 - Connection interface
        • ABE454 - Installation conditions [9]
        • ABE456 - Deployment conditions [6]
        • ABE559 - Parameters of solenoid valve
        • ABE560 - Parameters of filter regulator
        • ABE561 - Parameters of I/P converter
        • ABE562 - Parameters of restriction orifice/diffuser
        • ABE563 - Input [12]
        • ABE564 - Measured variable [5]
        • ABE565 - Type of measured variable [5]
        • ABE566 - Travel measurement
        • ABE567 - Measuring range for travel
        • ABE568 - Input [13]
        • ABE569 - Input [14]
        • ABE570 - Solenoid valve binary input
        • ABE571 - Pneumatic solenoid valve input
        • ABE572 - Output [9]
        • ABE573 - Type of output [9]
        • ABE574 - Output [10]
        • ABE575 - Type of output [10]
        • ABE576 - Pneumatic/hydraulic output for solenoid valve
        • ABE577 - Pneumatic/hydraulic output parameters for solenoid valve
        • ABE578 - Output [11]
        • ABE579 - Type of output [11]
        • ABE580 - Pneumatic/hydraulic output for I/P converter
        • ABE581 - Pneumatic/hydraulic output parameters for I/P converter
        • ABE582 - Performance [13]
        • ABE583 - Rated operating conditions [12]
        • ABE584 - Installation conditions [10]
        • ABE585 - Pressure-temperature design ratings [3]
        • ABE586 - Rated operating conditions [13]
        • ABE587 - Environmental design ratings [5]
        • ABE588 - Normal environmental conditions [5]
        • ABE589 - Limiting environmental conditions [3]
        • ABE590 - Rated operating conditions [14]
        • ABE591 - Installation conditions [11]
        • ABE592 - Deployment conditions [7]
        • ABE593 - Process design ratings [6]
        • ABE594 - Limiting process conditions [6]
        • ABE595 - Pressure-temperature design ratings [4]
        • ABE596 - Mechanical and electrical construction [position transmitter]
        • ABE597 - Structural design [position transmitter]
        • ABE598 - Structural design of a position transmitter
        • ABE599 - Mechanical and electrical construction [limit switch]
        • ABE600 - Structural design [limit switch]
        • ABE601 - Structural design of a limit switch
        • ABE602 - Switching position
        • ABE603 - Mechanical and electrical construction [solenoid valve]
        • ABE604 - Structural design [solenoid valve]
        • ABE605 - Body of solenoid valve
        • ABE606 - Structural design of a solenoid valve
        • ABE607 - Solenoid valve housing
        • ABE608 - Mechanical and electrical construction [filter regulator]
        • ABE609 - Structural design [filter regulator]
        • ABE610 - Body of filter regulator
        • ABE611 - Structural design of a filter regulator
        • ABE612 - Mechanical and electrical construction [restriction orifice/diffuser]
        • ABE613 - Structural design [restriction orifice/diffuser]
        • ABE614 - Structural design of a restriction orifice/diffuser
        • ABE615 - Material of restriction orifice/diffuser
        • ABE616 - Mechanical and electrical construction [I/P converter]
        • ABE617 - Structural design [I/P converter]
        • ABE618 - Structural design of an I/P converter
        • ABE658 - Calculation results of flow modification accessory
        • ABE660 - Process conditions for flow modification accessories
        • ABE662 - Process case [flow modification accessory]
        • ABE672 - Auxiliary input [18]
        • ABE674 - Type of auxiliary input [18]
        • ABE678 - Auxiliary input [19]
        • ABE680 - Type of auxiliary input [19]
        • ABE684 - Auxiliary input [20]
        • ABE686 - Type of auxiliary input [20]
        • ABE690 - Output [22]
        • ABE692 - Type of output [22]
        • ABE696 - Performance variable [18]
        • ABE698 - Type of performance variable [18]
        • ABE700 - Percentage performance [3]
        • ABE702 - Accuracy expressed as a percentage [4]
        • ABE704 - Performance [27]
        • ABE706 - Performance [28]
        • ABE708 - Environmental design ratings [6]
        • ABE710 - Normal environmental conditions [6]
        • ABE712 - Operability [2]
        • ABE714 - Operability [3]
        • ABE716 - Diagnosis [2]
        • ABE718 - Certificates and approvals [4]
        • ABE720 - Certificates and approvals [5]
        • ABE722 - Approval for use in special applications [4]
        • ABE724 - Approval for use in special applications [5]
        • ABE770 - Input [30]
        • ABE772 - Type of measured variable [18]
        • ABE774 - Measured variable [18]
        • ABE776 - Pressure gauge input
        • ABE778 - Indication range for pressure
        • ABE784 - Concentration measurement
        • ABE785 - Measuring range for concentration
        • ABE788 - Volume fraction measurement
        • ABE789 - Measuring range for volume fraction
        • ABE792 - Absolute performance for concentration
        • ABE793 - Absolute performance for volume fraction
        • ABE800 - Accuracy for a subrange of concentration
        • ABE809 - Accuracy for a subrange of volume fraction
        • ABE812 - Level measurement
        • ABE813 - Measuring range for level
        • ABE816 - Volume measurement
        • ABE817 - Measuring range for volume
        • ABE820 - Mass measurement
        • ABE823 - Degree of filling measurement
        • ABE826 - Absolute performance for level
        • ABE833 - Accuracy for a subrange of level
        • ABE836 - Absolute performance for volume
        • ABE843 - Accuracy for a subrange of volume
        • ABE846 - Absolute performance for mass
        • ABE853 - Accuracy for a subrange of mass
        • ABE856 - Absolute performance for degree of filling
        • ABE863 - Accuracy for a subrange of degree of filling
        • ABE866 - Absolute performance for point level
        • ABE871 - Point level measurement
        • ABE873 - Assigned level range
        • ABE876 - Assigned mass range
        • ABE877 - Assigned volume range
        • ABE878 - Assigned degree of filling range
        • ABE883 - Assigned concentration range
        • ABE888 - Ullage measurement
        • ABE900 - Assigned ullage range
        • ABE901 - Measuring range for ullage
        • ABE913 - Assigned level pulse value
        • ABE914 - Assigned ullage pulse value
        • ABE915 - Assigned volume pulse value
        • ABE916 - Assigned degree of filling pulse value
        • ABE939 - Absolute performance for ullage
        • ABE946 - Accuracy for a subrange of ullage
        • ABE949 - Influence of external quantities expressed for level
        • ABE956 - Influence of external quantities expressed for ullage
        • ABE963 - Influence of external quantities expressed for volume
        • ABE970 - Influence of external quantities expressed for mass
        • ABE977 - Influence of external quantities expressed for degree of filling
        • ABE984 - Influence of external quantities expressed for point level
        • ABE991 - Measuring range for point level
        • ABE995 - Dynamic behaviour of point level
        • ABF002 - Measuring range for mass
        • ABF003 - Performance of non-contact temperature transmitter/radiation temperature transmitter
        • ABF004 - Measuring range for degree of filling
        • ABF016 - Material of stilling well
        • ABF017 - Structural design of a window
        • ABF018 - Structural design of a free-space radar level transmitter
        • ABF023 - Structural design of a bypass/measuring chamber
        • ABF024 - Structural design of a stilling well
        • ABF025 - Structural design of a float level transmitter and switch
        • ABF029 - Float
        • ABF035 - Design conditions of float
        • ABF039 - Material of float
        • ABF040 - Float guide
        • ABF042 - Material of float guide
        • ABF045 - Material of float cushioning
        • ABF046 - Vertical float switch
        • ABF050 - Horizontal float switch
        • ABF051 - Material of support bracket
        • ABF052 - Material of float arm
        • ABF053 - Voltage measurement
        • ABF054 - Resistance measurement
        • ABF057 - Measuring range for voltage
        • ABF058 - Measuring range for resistance
        • ABF065 - Assigned voltage range
        • ABF066 - Assigned resistance range
        • ABF075 - Absolute performance for voltage
        • ABF076 - Absolute performance for resistance
        • ABF089 - Accuracy for a subrange of voltage
        • ABF090 - Accuracy for a subrange of resistance
        • ABF095 - Influence of external quantities expressed for voltage
        • ABF096 - Influence of external quantities expressed for resistance
        • ABF109 - Absolute performance for temperature [2]
        • ABF114 - Influence of external quantities expressed as an additional inaccuracy for an analog output
        • ABF117 - Structural design of a guided-wave radar level transmitter
        • ABF118 - Microwave probe
        • ABF125 - Material of guided microwave probe
        • ABF129 - Material of centering disc
        • ABF135 - Material of bottom weight
        • ABF136 - Structural design of a capacitance level transmitter/switch
        • ABF142 - Material of probe
        • ABF148 - Material of build-up compensation
        • ABF154 - Structural design of a conductance level transmitter/switch
        • ABF155 - Single electrode probe
        • ABF157 - Measuring/grounding probe
        • ABF162 - Indicator rail
        • ABF168 - Sonic probe
        • ABF174 - Material of adjusting mechanism
        • ABF182 - Structural design of an ultrasonic level transmitter
        • ABF183 - Structural design of a vibrating level switch
        • ABF185 - Vibration probe
        • ABF188 - Extension of vibration probe
        • ABF190 - Material of vibration probe extension
        • ABF191 - Structural design of a rotary paddle switch
        • ABF192 - Paddle
        • ABF196 - Material of paddle
        • ABF197 - Material of shaft/cable
        • ABF199 - Material of extension
        • ABF210 - External switch
        • ABF213 - External continuous probe
        • ABF217 - Structural design of a magnetic level gauge
        • ABF220 - Parameters of non-contact temperature measurement
        • ABF224 - Temperature indication
        • ABF225 - Indication range for temperature
        • ABF226 - Structural design of a radiation thermometer
        • ABF254 - Objective
        • ABF261 - Fibre optics
        • ABF266 - Purge system
        • ABF268 - Cooling system
        • ABF276 - Structural design of a sight level gauge
        • ABF277 - Indicator for sight glass
        • ABF282 - Structural design of a sight level indicator
        • ABF283 - Structural design of an optical level switch
        • ABF285 - Structural design of a thermal level switch
        • ABF287 - Input for temperature transmitter
        • ABF289 - RTD/thermocouple probe output
        • ABF294 - Flying lead
        • ABF307 - Dynamic behaviour [2]
        • ABF308 - Long-term behaviour [2]
        • ABF315 - Infrared detector
        • ABF319 - Structural design of a thermowell
        • ABF325 - Material of inner tube
        • ABF326 - Thermowell tip
        • ABF329 - Material of sheath/additional sleeve
        • ABF334 - Material of extension
        • ABF335 - Connected cable
        • ABF341 - Structural design of a hydrostatic pressure level transmitter
        • ABF342 - Structural design of a displacer lever transmitter/switch
        • ABF343 - Structural design of a nuclear level transmitter/switch
        • ABF348 - Immersible probe or transmitter
        • ABF351 - Material of probe/transmitter
        • ABF353 - Cable or tube
        • ABF358 - Material of cable/tube
        • ABF360 - Displacer
        • ABF363 - Material of displacer spring
        • ABF364 - Material of torsion rod
        • ABF365 - Material of torsion rod arm
        • ABF366 - Design conditions of displacer
        • ABF367 - Material of displacer
        • ABF368 - Displacer support
        • ABF370 - Material of displacer support
        • ABF371 - Material of displacer cushioning
        • ABF375 - Transmitter/switch housing
        • ABF376 - Cleaning in place conditions for optical devices
        • ABF378 - Structural design of a thermowell extension
        • ABF380 - Structural design of a connection head
        • ABF396 - Structural design of separate temperature transmitter
        • ABF398 - RTD/resistance measurement
        • ABF399 - Thermocouple/voltage measurement
        • ABF405 - Structural design of an insert/element
        • ABF417 - Temperature sensor
        • ABF418 - RTD
        • ABF419 - Thermocouple
        • ABF431 - Structural design of a plumb bob level transmitter
        • ABF432 - Structural design of a servo level transmitter
        • ABF433 - Structural design of an ultrasonic level switch
        • ABF451 - Material of drum housing
        • ABF452 - Servo displacer
        • ABF454 - Material of wire
        • ABF459 - Material of source container
        • ABF460 - Material of detector casing
        • ABF463 - Nuclear source
        • ABF464 - Capsule of nuclear source
        • ABF465 - Container of nuclear source
        • ABF466 - Nuclear detector
        • ABF467 - Detector
        • ABF468 - Modulator
        • ABF492 - Performance of temperature measuring devices
        • ABF497 - Resistance parameter setting/sensor matching parameters
        • ABF513 - Structural design of temperature gauge
        • ABF515 - Insert/element
        • ABF517 - Structural design of a microwave level switch
        • ABF518 - Structural design of a laser level transmitter
        • ABF520 - Ultrasonic probe
        • ABF525 - Microwave emitter
        • ABF526 - Material of emitter
        • ABF527 - Material of receiver
        • ABF535 - Sight glass
        • ABF542 - Laser probe
        • ABF546 - Material of base plate
        • ABF561 - Maximum measuring range for density
        • ABF562 - Calibrated measuring range for density
        • ABF569 - Measuring range for mass fraction
        • ABF570 - Mass fraction measurement
        • ABF597 - Assigned volume fraction range
        • ABF598 - Assigned mass fraction range
        • ABF605 - Accuracy for a subrange of mass fraction
        • ABF608 - Absolute performance for mass fraction
        • ABF609 - Influence of external quantities expressed for concentration
        • ABF616 - Influence of external quantities expressed for volume fraction
        • ABF623 - Influence of external quantities expressed for mass fraction
        • ABF630 - Temperature gauge input
        • ABF631 - Structural design of a buoyancy density transmitter
        • ABF632 - Structural design of a refractive index density transmitter
        • ABF633 - Structural design of a vibrating tube density transmitter
        • ABF634 - Structural design of a radiometric density transmitter
        • ABF635 - Structural design of a vibrating fork/rod density transmitter
        • ABF636 - Structural design of an ultrasonic density transmitter
        • ABF637 - Structural design of a microwave density transmitter
        • ABF639 - Transducer of an ultrasonic density transmitter
        • ABF640 - Inline ultrasonic density transmitter
        • ABF641 - Material of ultrasonic sensor head
        • ABF642 - Insertion ultrasonic density transmitter
        • ABF921 - Input [14]
        • ABF922 - Input [15]
        • ABF923 - Input [16]
        • ABF924 - Input [17]
        • ABF927 - Input [20]
        • ABF928 - Input [21]
        • ABF929 - Input [22]
        • ABF930 - Input [23]
        • ABF931 - Input [24]
        • ABF932 - Input [25]
        • ABF933 - Input [26]
        • ABF934 - Input [27]
        • ABF935 - Input [28]
        • ABF936 - Input [29]
        • ABF938 - Input [31]
        • ABF940 - Input [33]
        • ABF941 - Input [34]
        • ABF942 - Measured variable [6]
        • ABF943 - Measured variable [7]
        • ABF944 - Measured variable [8]
        • ABF945 - Measured variable [9]
        • ABF946 - Measured variable [10]
        • ABF947 - Measured variable [11]
        • ABF948 - Measured variable [12]
        • ABF949 - Measured variable [13]
        • ABF950 - Measured variable [14]
        • ABF951 - Measured variable [15]
        • ABF952 - Measured variable [16]
        • ABF953 - Measured variable [17]
        • ABF975 - Measured variable [39]
        • ABF976 - Measured variable [40]
        • ABF977 - Measured variable [41]
        • ABF978 - Type of measured variable [6]
        • ABF979 - Type of measured variable [7]
        • ABF980 - Type of measured variable [8]
        • ABF981 - Type of measured variable [9]
        • ABF982 - Type of measured variable [10]
        • ABF983 - Type of measured variable [11]
        • ABF984 - Type of measured variable [12]
        • ABF985 - Type of measured variable [13]
        • ABF986 - Type of measured variable [14]
        • ABF987 - Type of measured variable [15]
        • ABF988 - Type of measured variable [16]
        • ABF989 - Type of measured variable [17]
        • ABG011 - Type of measured variable [39]
        • ABG012 - Type of measured variable [40]
        • ABG013 - Type of measured variable [41]
        • ABG050 - Auxiliary input [12]
        • ABG051 - Auxiliary input [13]
        • ABG052 - Auxiliary input [14]
        • ABG053 - Auxiliary input [15]
        • ABG054 - Auxiliary input [16]
        • ABG055 - Auxiliary input [17]
        • ABG059 - Auxiliary input [21]
        • ABG060 - Auxiliary input [22]
        • ABG061 - Type of auxiliary input [12]
        • ABG062 - Type of auxiliary input [13]
        • ABG063 - Type of auxiliary input [14]
        • ABG064 - Type of auxiliary input [15]
        • ABG065 - Type of auxiliary input [16]
        • ABG066 - Type of auxiliary input [17]
        • ABG070 - Type of auxiliary input [21]
        • ABG071 - Type of auxiliary input [22]
        • ABG083 - Analog current input [4]
        • ABG084 - Analog current input [5]
        • ABG085 - Analog current input [6]
        • ABG089 - Assigned variable [9]
        • ABG090 - Assigned variable [10]
        • ABG091 - Assigned variable [11]
        • ABG092 - Assigned variable [12]
        • ABG094 - Assigned variable [14]
        • ABG095 - Assigned variable [15]
        • ABG096 - Assigned variable [16]
        • ABG097 - Assigned variable [17]
        • ABG099 - Assigned variable [19]
        • ABG101 - Assigned variable [21]
        • ABG118 - Analog voltage input [4]
        • ABG119 - Analog voltage input [5]
        • ABG120 - Analog voltage input [6]
        • ABG121 - Frequency input [4]
        • ABG122 - Frequency input [5]
        • ABG123 - Pulse input [4]
        • ABG124 - Manufacturer-specific input [4]
        • ABG125 - Manufacturer-specific input [5]
        • ABG126 - Manufacturer-specific input [6]
        • ABG127 - Output [12]
        • ABG128 - Output [13]
        • ABG129 - Output [14]
        • ABG130 - Output [15]
        • ABG131 - Output [16]
        • ABG132 - Output [17]
        • ABG133 - Output [18]
        • ABG134 - Output [19]
        • ABG135 - Output [20]
        • ABG136 - Output [21]
        • ABG138 - Output [23]
        • ABG139 - Output [24]
        • ABG140 - Output [25]
        • ABG141 - Output [26]
        • ABG142 - Type of output [12]
        • ABG143 - Type of output [13]
        • ABG144 - Type of output [14]
        • ABG145 - Type of output [15]
        • ABG146 - Type of output [16]
        • ABG147 - Type of output [17]
        • ABG148 - Type of output [18]
        • ABG149 - Type of output [19]
        • ABG150 - Type of output [20]
        • ABG151 - Type of output [21]
        • ABG153 - Type of output [23]
        • ABG154 - Type of output [24]
        • ABG155 - Type of output [25]
        • ABG156 - Type of output [26]
        • ABG172 - Analog current output [8]
        • ABG173 - Analog current output [9]
        • ABG174 - Analog current output [10]
        • ABG175 - Analog current output [11]
        • ABG176 - Analog current output [12]
        • ABG177 - Analog current output [13]
        • ABG178 - Analog current output [14]
        • ABG179 - Analog current output [15]
        • ABG180 - Analog current output [16]
        • ABG181 - Analog voltage output [8]
        • ABG182 - Analog voltage output [9]
        • ABG183 - Analog voltage output [10]
        • ABG184 - Analog voltage output [11]
        • ABG185 - Analog voltage output [12]
        • ABG186 - Analog voltage output [13]
        • ABG187 - Analog voltage output [14]
        • ABG188 - Analog voltage output [15]
        • ABG189 - Analog voltage output [16]
        • ABG190 - Frequency output [8]
        • ABG192 - Frequency output [10]
        • ABG193 - Frequency output [11]
        • ABG194 - Frequency output [12]
        • ABG195 - Frequency output [13]
        • ABG196 - Frequency output [14]
        • ABG197 - Frequency output [15]
        • ABG198 - Frequency output [16]
        • ABG199 - Frequency output [17]
        • ABG200 - Pulse output [2]
        • ABG201 - Manufacturer-specific output [8]
        • ABG203 - Manufacturer-specific output [10]
        • ABG204 - Manufacturer-specific output [11]
        • ABG205 - Manufacturer-specific output [12]
        • ABG207 - Manufacturer-specific output [14]
        • ABG208 - Manufacturer-specific output [15]
        • ABG209 - Manufacturer-specific output [16]
        • ABG210 - Manufacturer-specific output [17]
        • ABG211 - Manufacturer-specific output [18]
        • ABG212 - Pneumatic/hydraulic output [8]
        • ABG216 - Pneumatic/hydraulic output [12]
        • ABG217 - Performance [14]
        • ABG218 - Performance [15]
        • ABG219 - Performance [16]
        • ABG220 - Performance [17]
        • ABG221 - Performance [18]
        • ABG222 - Performance [19]
        • ABG223 - Performance [20]
        • ABG225 - Performance [22]
        • ABG226 - Performance [23]
        • ABG227 - Performance [24]
        • ABG228 - Performance [25]
        • ABG229 - Performance [26]
        • ABG232 - Performance [29]
        • ABG233 - Performance [30]
        • ABG234 - Reference conditions of the device [5]
        • ABG235 - Reference conditions of the device [6]
        • ABG236 - Reference conditions of the device [7]
        • ABG237 - Reference conditions of the device [8]
        • ABG238 - Reference conditions of the device [9]
        • ABG239 - Reference conditions of the device [10]
        • ABG240 - Reference conditions of the device [11]
        • ABG241 - Reference device conditions [2]
        • ABG243 - Reference device conditions [4]
        • ABG244 - Reference device conditions [5]
        • ABG245 - Reference device conditions [6]
        • ABG246 - Reference process conditions [2]
        • ABG247 - Reference process conditions [3]
        • ABG248 - Performance variable [8]
        • ABG249 - Performance variable [9]
        • ABG250 - Performance variable [10]
        • ABG251 - Performance variable [11]
        • ABG252 - Performance variable [12]
        • ABG253 - Performance variable [13]
        • ABG254 - Performance variable [14]
        • ABG255 - Performance variable [15]
        • ABG256 - Performance variable [16]
        • ABG257 - Performance variable [17]
        • ABG259 - Performance variable [19]
        • ABG260 - Performance variable [20]
        • ABG263 - Performance variable [23]
        • ABG264 - Performance variable [24]
        • ABG265 - Performance variable [25]
        • ABG266 - Reference conditions for the performance variable [5]
        • ABG267 - Reference conditions for the performance variable [6]
        • ABG268 - Reference conditions for the performance variable [7]
        • ABG269 - Reference conditions for the performance variable [8]
        • ABG270 - Reference conditions for the performance variable [9]
        • ABG271 - Reference conditions for the performance variable [10]
        • ABG272 - Reference conditions for the performance variable [11]
        • ABG273 - Type of performance variable [7]
        • ABG274 - Type of performance variable [8]
        • ABG275 - Type of performance variable [9]
        • ABG276 - Type of performance variable [10]
        • ABG277 - Type of performance variable [11]
        • ABG278 - Type of performance variable [12]
        • ABG279 - Type of performance variable [13]
        • ABG280 - Type of performance variable [14]
        • ABG281 - Type of performance variable [15]
        • ABG282 - Type of performance variable [16]
        • ABG283 - Type of performance variable [17]
        • ABG285 - Type of performance variable [19]
        • ABG289 - Type of performance variable [23]
        • ABG307 - Percentage performance [3]
        • ABG309 - Percentage performance [6]
        • ABG310 - Percentage performance [7]
        • ABG311 - Percentage performance [5]
        • ABG313 - Influence of external quantities expressed as a percentage [3]
        • ABG314 - Influence of external quantities expressed as a percentage [4]
        • ABG315 - Dynamic behaviour [3]
        • ABG316 - Dynamic behaviour [4]
        • ABG317 - Dynamic behaviour [5]
        • ABG318 - Absolute performance for density [2]
        • ABG319 - Absolute performance for temperature [3]
        • ABG320 - Rated operating conditions [15]
        • ABG321 - Rated operating conditions [16]
        • ABG322 - Rated operating conditions [17]
        • ABG323 - Rated operating conditions [18]
        • ABG325 - Rated operating conditions [20]
        • ABG326 - Rated operating conditions [21]
        • ABG327 - Rated operating conditions [22]
        • ABG328 - Rated operating conditions [23]
        • ABG331 - Installation conditions [12]
        • ABG332 - Installation conditions [13]
        • ABG333 - Deployment conditions [8]
        • ABG334 - Deployment conditions [9]
        • ABG335 - Process design ratings [7]
        • ABG336 - Process design ratings [8]
        • ABG337 - Process design ratings [9]
        • ABG339 - Process design ratings [11]
        • ABG340 - Process design ratings [12]
        • ABG341 - Process design ratings [13]
        • ABG342 - Process design ratings [14]
        • ABG343 - Normal process conditions [5]
        • ABG344 - Normal process conditions [6]
        • ABG345 - Normal process conditions [7]
        • ABG346 - Normal process conditions [8]
        • ABG347 - Normal process conditions [9]
        • ABG348 - Normal process conditions [10]
        • ABG349 - Limiting process conditions [7]
        • ABG350 - Limiting process conditions [8]
        • ABG351 - Limiting process conditions [9]
        • ABG352 - Accuracy expressed as a percentage [4]
        • ABG353 - Accuracy expressed as a percentage [5]
        • ABG355 - Temperature measurement [1]
        • ABG356 - Temperature measurement [2]
        • ABG357 - Environmental design ratings [6]
        • ABG359 - Density measurement [2]
        • ABG360 - Mechanical and electrical construction [level transmitter]
        • ABG361 - Mechanical and electrical construction [level switch]
        • ABG362 - Mechanical and electrical construction [hydrostatic pressure level transmitter]
        • ABG363 - Mechanical and electrical construction [displacer level transmitter/switch]
        • ABG364 - Mechanical and electrical construction [guided-wave radar level transmitter/switch]
        • ABG365 - Mechanical and electrical construction [float level transmitter/switch]
        • ABG366 - Mechanical and electrical construction [capacitance level transmitter/switch]
        • ABG367 - Mechanical and electrical construction [conductance level transmitter/switch]
        • ABG368 - Mechanical and electrical construction [magnetic level gauge]
        • ABG369 - Mechanical and electrical construction [nuclear level transmitter/switch]
        • ABG370 - Mechanical and electrical construction [free-space radar level transmitter]
        • ABG371 - Mechanical and electrical construction [plumb bob level transmitter]
        • ABG372 - Mechanical and electrical construction [ultrasonic level transmitter]
        • ABG373 - Mechanical and electrical construction [laser level transmitter]
        • ABG374 - Mechanical and electrical construction [servo level transmitter ]
        • ABG375 - Mechanical and electrical construction [separate level transmitter/switching unit]
        • ABG376 - Mechanical and electrical construction [optical level switch]
        • ABG377 - Mechanical and electrical construction [rotary paddle switch]
        • ABG378 - Mechanical and electrical construction [vibrating level switch]
        • ABG379 - Mechanical and electrical construction [ultrasonic level switch]
        • ABG380 - Mechanical and electrical construction [microwave level switch]
        • ABG381 - Mechanical and electrical construction [thermal level switch]
        • ABG382 - Mechanical and electrical construction [sight level indicator]
        • ABG383 - Mechanical and electrical construction [sight level gauge]
        • ABG384 - Mechanical and electrical construction [stilling well]
        • ABG385 - Mechanical and electrical construction [window]
        • ABG386 - Mechanical and electrical construction [bypass/measuring chamber]
        • ABG387 - Mechanical and electrical construction [temperature transmitter]
        • ABG388 - Mechanical and electrical construction [contact temperature transmitter]
        • ABG389 - Mechanical and electrical construction [radiation thermometer]
        • ABG390 - Mechanical and electrical construction [separate temperature transmitter]
        • ABG391 - Mechanical and electrical construction [insert/element]
        • ABG392 - Mechanical and electrical construction [temperature connection head]
        • ABG393 - Mechanical and electrical construction [thermowell extension]
        • ABG394 - Mechanical and electrical construction [thermowell]
        • ABG395 - Mechanical and electrical construction [temperature gauge]
        • ABG396 - Mechanical and electrical construction [density transmitter]
        • ABG397 - Mechanical and electrical construction [buoyancy density transmitter]
        • ABG398 - Mechanical and electrical construction [refractive index density transmitter]
        • ABG399 - Mechanical and electrical construction [vibrating tube density transmitter]
        • ABG400 - Mechanical and electrical construction [radiometric density transmitter]
        • ABG401 - Mechanical and electrical construction [vibrating fork/rod density transmitter]
        • ABG402 - Mechanical and electrical construction [ultrasonic density transmitter]
        • ABG403 - Mechanical and electrical construction [microwave density transmitter]
        • ABG404 - Mechanical and electrical construction [separate density transmitter]
        • ABG405 - Structural design [level transmitter]
        • ABG406 - Structural design [level switch]
        • ABG407 - Structural design [hydrostatic pressure level transmitter]
        • ABG408 - Structural design [displacer level transmitter/switch]
        • ABG409 - Structural design [guided-wave radar level transmitter/switch]
        • ABG410 - Structural design [float level transmitter/switch]
        • ABG411 - Structural design [capacitance level transmitter/switch]
        • ABG412 - Structural design [conductance level transmitter/switch]
        • ABG413 - Structural design [magnetic level gauge]
        • ABG414 - Structural design [nuclear level transmitter/switch]
        • ABG415 - Structural design [free-space radar level transmitter]
        • ABG416 - Structural design [plumb bob level transmitter]
        • ABG417 - Structural design [ultrasonic level transmitter]
        • ABG418 - Structural design [laser level transmitter]
        • ABG419 - Structural design [servo level transmitter ]
        • ABG420 - Structural design [separate level transmitter/switching unit]
        • ABG421 - Structural design [optical level switch]
        • ABG422 - Structural design [rotary paddle switch]
        • ABG423 - Structural design [vibrating level switch]
        • ABG424 - Structural design [ultrasonic level switch]
        • ABG425 - Structural design [microwave level switch]
        • ABG426 - Structural design [thermal level switch]
        • ABG427 - Structural design [sight level indicator]
        • ABG428 - Structural design [sight level gauge]
        • ABG429 - Structural design [stilling well]
        • ABG430 - Structural design [window]
        • ABG431 - Structural design [bypass/measuring chamber]
        • ABG432 - Structural design [temperature transmitter]
        • ABG433 - Structural design [contact temperature transmitter]
        • ABG434 - Structural design [radiation thermometer]
        • ABG435 - Structural design [separate temperature transmitter]
        • ABG436 - Structural design [insert/element]
        • ABG437 - Structural design [temperature connection head]
        • ABG438 - Structural design [thermowell extension]
        • ABG439 - Structural design [thermowell]
        • ABG440 - Structural design [temperature gauge]
        • ABG441 - Structural design [density transmitter]
        • ABG442 - Structural design [buoyancy density transmitter]
        • ABG443 - Structural design [refractive index density transmitter]
        • ABG444 - Structural design [vibrating tube density transmitter]
        • ABG445 - Structural design [radiometric density transmitter]
        • ABG446 - Structural design [vibrating fork/rod density transmitter]
        • ABG447 - Structural design [ultrasonic density transmitter]
        • ABG448 - Structural design [microwave density transmitter]
        • ABG449 - Structural design [separate density transmitter]
        • ABG450 - Process case [level]
        • ABG451 - Process case [temperature]
        • ABG452 - Process case [density]
        • ABG453 - Process case variables [level]
        • ABG454 - Process case variables [temperature]
        • ABG455 - Total fluid [temperature]
        • ABG456 - Total fluid [density]
        • ABG457 - Phase [level]
        • ABG458 - Phase [density]
        • ABG459 - Aqueous phase [level]
        • ABG460 - Aqueous phase [density]
        • ABG461 - Non-aqueous liquid phase [level]
        • ABG462 - Non-aqueous liquid phase [density]
        • ABG463 - Gas/vapor phase [level]
        • ABG464 - Gas/vapor phase [density]
        • ABG465 - Solid/particle phase [level]
        • ABG466 - Solid/particle phase [density]
        • ABG467 - Operating conditions for device design [level]
        • ABG468 - Operating conditions for device design [temperature]
        • ABG469 - Operating conditions for device design [density]
        • ABG470 - Installation design conditions [4]
        • ABG471 - Deployment design conditions [4]
        • ABG472 - Process design conditions [level]
        • ABG473 - Process design conditions [temperature]
        • ABG474 - Process design conditions [density]
        • ABG475 - Normal process design conditions [4]
        • ABG476 - Normal process design conditions [5]
        • ABG477 - Pressure-temperature design conditions [temperature]
        • ABG478 - Process equipment [level]
        • ABG479 - Process equipment [temperature]
        • ABG480 - Physical location [4]
        • ABH041 - Pneumatic/hydraulic output [17]
        • ABH044 - Assigned variable [22]
        • ABH046 - External cleaning in place conditions [1]
        • ABH048 - Frequency input [6]
        • ABH050 - Manufacturer-specific input [7]
        • ABH052 - Reference process conditions [4]
        • ABH054 - Process case variables [density]
        • ABH067 - Intermediate phase [level]
        • ABH071 - Fluid phase design conditions
        • ABH091 - Overall construction
        • ABH095 - Strapping table
        • ABH099 - Strapping table point
        • ABH106 - Insulation and trace heating of process equipment
        • ABH108 - Shell
        • ABH113 - Head
        • ABH126 - Support frame
        • ABH128 - Process equipment connection
        • ABH129 - Position of nozzle
        • ABH135 - Insulation and trace heating
        • ABH137 - Internal fitting
        • ABH141 - Stilling well
        • ABH145 - Bypass
        • ABH159 - Level measurement instrument installation
        • ABH167 - Instrument nozzle
        • ABH168 - Parameters of differential pressure level measurement
        • ABH190 - Foam phase [level]
        • ABH204 - Window
        • ABH208 - Structural design of an antenna
        • ABH213 - Material of antenna
        • ABH220 - Material between detector and target
        • ABH222 - Dust
        • ABH229 - Process case variables for non-contact temperature transmitter
        • ABH233 - Dimensions of target
        • ABH247 - Window for radiation
        • ABH253 - Atmosphere in sight path
        • ABH256 - Gas component
        • ABH258 - Radiation thermometer parameters
        • ABH326 - Total process material
        • ABH340 - Input [35]
        • ABH342 - Normal process design conditions [6]
        • ABH344 - Normal process design conditions [7]
        • ABH346 - Performance [31]
        • ABH348 - Performance [32]
        • ABH353 - Installation design conditions [5]
        • ABH361 - Material of filter
        • ABH363 - Filter
        • ABH365 - Insertion type microwave density transmitter
        • ABH366 - Material of means of decoupling vibrations
        • ABH390 - Material of union
        • ABH412 - Displacer extension
        • ABH418 - Material of magnetic sleeve
        • ABH421 - Float extension
        • ABH422 - Material of extension
        • ABH436 - Stem/bulb extension
        • ABH439 - Measuring or control point
        • ABH448 - Relation of minimum process pressure - operating temperature
        • ABH458 - Rated Operating Conditions [27]
        • ABH460 - Process design ratings [15]
        • ABH462 - Normal process conditions [11]
        • ABH467 - Fire resistance
        • ABH471 - Fire proof design approval
        • ABH474 - Illumination
        • ABH478 - Shield of sight glass
        • ABH501 - Manual
        • ABH502 - Drawing
        • ABH503 - Additional document
        • ABH504 - Remark
        • ABH515 - Certificate or approval
        • ABH531 - Output signal processing variable
        • ABH532 - Input variable
        • ABH533 - Output variable
        • ABH534 - Compensation
        • ABH536 - Compensation variable
        • ABH554 - Device or component pressure test
        • ABH561 - Calibration
        • ABH563 - Calibration point of mass flow
        • ABH565 - Output values of mass flow
        • ABH596 - Replacement of values
        • ABH610 - Calibration of mass flow
        • ABH611 - Calibration of actual volume flow
        • ABH612 - Calibration of normalized volume flow
        • ABH613 - Calibration of flow velocity
        • ABH614 - Calibration of density
        • ABH615 - Calibration of concentration
        • ABH616 - Calibration of volume fraction
        • ABH617 - Calibration of mass fraction
        • ABH618 - Calibration of pressure
        • ABH619 - Calibration of temperature
        • ABH620 - Calibration of dynamic viscosity
        • ABH621 - Calibration of level
        • ABH622 - Calibration of ullage
        • ABH623 - Calibration of mass
        • ABH624 - Calibration of volume
        • ABH625 - Calibration of degree of filling
        • ABH626 - Calibration of voltage
        • ABH627 - Calibration of resistance
        • ABH628 - Calibration of other variable
        • ABH629 - Calibration point of actual volume flow
        • ABH630 - Calibration point of normalized volume flow
        • ABH631 - Calibration point of flow velocity
        • ABH632 - Calibration point of density
        • ABH633 - Calibration point of concentration
        • ABH634 - Calibration point of volume fraction
        • ABH635 - Calibration point of mass fraction
        • ABH636 - Calibration point of pressure
        • ABH637 - Calibration point of temperature
        • ABH638 - Calibration point of dynamic viscosity
        • ABH639 - Calibration point of level
        • ABH640 - Calibration point of ullage
        • ABH641 - Calibration point of mass
        • ABH642 - Calibration point of volume
        • ABH643 - Calibration point of degree of filling
        • ABH644 - Calibration point of voltage
        • ABH645 - Calibration point of resistance
        • ABH646 - Calibration point of other variable
        • ABH647 - Output values of actual volume flow
        • ABH648 - Output values of normalized volume flow
        • ABH649 - Output values of flow velocity
        • ABH650 - Output values of density
        • ABH651 - Output values of concentration
        • ABH652 - Output values of volume fraction
        • ABH653 - Output values of mass fraction
        • ABH654 - Output values of pressure
        • ABH655 - Output values of temperature
        • ABH656 - Output values of dynamic viscosity
        • ABH657 - Output values of level
        • ABH658 - Output values of ullage
        • ABH659 - Output values of mass
        • ABH660 - Output values of volume
        • ABH661 - Output values of degree of filling
        • ABH662 - Output values of voltage
        • ABH663 - Output values of resistance
        • ABH664 - Output values of other variable
        • ABH691 - Low flow cut-off
        • ABH697 - Linearization table
        • ABH699 - Linearization point
        • ABH702 - Trip points
        • ABH705 - Trip point
        • ABH813 - Hazardous goods
        • ABH836 - Storage dimensions and weight
        • ABH839 - Configuration parameter set
        • ABH840 - User application parameters
        • ABH841 - Device (resource) block
        • ABH842 - Diagnostic status
        • ABH843 - Flow technology block
        • ABH849 - Level technology block
        • ABH867 - Pressure technology block
        • ABH869 - Temperature technology block
        • ABH876 - Analog input function block
        • ABH877 - OUT_SCALE
        • ABH878 - Discrete input function block
        • ABH885 - Control function block
        • ABH888 - Analog output function block
        • ABH889 - IN_SCALE
        • ABH890 - Discrete output function block
        • ABH901 - Pulse input function block
        • ABH904 - Calculation function block
        • ABH911 - HART configuration parameter
        • ABH912 - Manufacturer-specific block parameter
        • ABH913 - Other function block
        • ABH914 - Other block parameter
        • ABH916 - HART universal parameters
        • ABH917 - HART common practice parameters
        • ABH918 - HART data link parameters
        • ABH919 - HART burst mode parameters
        • ABH920 - HART event notification parameters
        • ABH921 - Monitored events
        • ABH922 - HART wireless network commands
        • ABH923 - Device-specific HART parameter
        • ABH924 - Other HART parameter
        • ABI411 - Influence of external quantities expressed for density [2]
        • ABI414 - Gross dimensions and weight
        • ABI415 - Type of transportation
        • ABI416 - Special packing information
        • ABI417 - Packing information
        • ABI462 - Explosion protection parameters for nonincendive installation
        • ABI472 - Accessory
        • ABI473 - Spare part
        • ABI474 - Consumable
        • ABI475 - Disposal concept
        • ABI476 - Installation requirement
        • ABI477 - Document
        • ABI478 - Requirement
        • ABI479 - Regular maintenance/service
        • ABI480 - Maintenance/service requirement
        • ABI482 - Regular inspection
        • ABI483 - Inspection requirement
        • ABI484 - Event triggered inspection
        • ABI485 - Event triggered maintenance/service
        • ABI486 - safety instruction
        • ABI487 - Repair concept
        • ABI488 - Commissioning requirement
        • ABI489 - Decommissioning requirement
        • ABI571 - Address
        • ABI572 - Contact information
        • ABI573 - Additional information
        • ABI711 - Standard parameters
        • ABI714 - MODE_BLOCK
        • ABI715 - ALARM_SUMMARY
        • ABI728 - PRIMARY_MEASUREMENT
        • ABI729 - SECONDARY_MEASUREMENT
        • ABI734 - DISCRETE_SETPOINT
        • ABI735 - DISCRETE_READBACK
        • ABI738 - SETPOINT
        • ABI739 - READBACK
        • ABI752 - On-off actuation technology block
        • ABI757 - MEASUREMENT
        • ABI759 - HIGH_HIGH_ALARM
        • ABI760 - HIGH_ALARM
        • ABI761 - LOW_ALARM
        • ABI762 - LOW_LOW_ALARM
        • ABI763 - SIMULATE
        • ABI765 - REMOTE_SETPOINT
        • ABI773 - SIMULATE_DISCRETE
        • ABI796 - UPDATE_EVENT
        • ABI797 - BLOCK_ALARM
        • ABI807 - Density technology block
        • ABI812 - Modulation actuation technology block
        • ABI816 - OUT
        • ABI824 - DISCRETE_PRIMARY_MEASUREMENT
        • ABI825 - DISCRETE_OUT
        • ABI832 - IN
        • ABI862 - DISCRETE_REMOTE_SETPOINT
        • ABJ593 - Influence of external quantities expressed as a percentage [5]
        • ABJ595 - Accuracy expressed as a percentage [6]
        • ABJ606 - SENSOR_DESCRIPTION
        • ABJ608 - SENSOR_SIGNAL
        • ABJ609 - SENSOR_CALIBRATION
        • ABJ610 - MEASUREMENT_TRANSFORMATION
        • ABJ611 - PRESSURE_MEASUREMENT_TRANSFORMATION
        • ABJ612 - FLOW_MEASUREMENT_TRANSFORMATION
        • ABJ613 - TEMPERATURE_SENSOR_DESCRIPTION
        • ABJ614 - SENSOR_INPUT
        • ABJ615 - Other measurement technology block
        • ABJ616 - Device identification
        • ABJ617 - DISCRETE_MEASUREMENT
        • ABJ618 - READBACK_OUT
        • ABJ619 - DISCRETE_READBACK_OUT
        • ABJ620 - INPUT
        • ABJ621 - OUTPUT
        • ABJ622 - TRACK_IN
        • ABJ623 - TRACK_IN_SCALE
        • ABJ624 - PULSE_INPUT
        • ABJ625 - PULSE_OUTPUT
        • ABJ626 - ACCUMULATED_OUT
        • ABN610 - Simulation
        • ABN682 - Continuous measurement variables
        • ABN683 - Special pressure measurement variables
        • ABN684 - Special flow rate measurement variables
        • ABN685 - Special totalizer value measurement variables
        • ABN686 - Special level measurement variables
        • ABN687 - Special density measurement variables
        • ABN688 - Concentration measurement variables
        • ABN689 - Liquid analysis measurement variables
        • ABN690 - Special environmental measurement variables
        • ABN691 - Special electrical measurement variables
        • ABN692 - Special time variables
        • ABN693 - Special distance variables
        • ABN694 - Special machine vibration measurement variables
        • ABN695 - Special final control elements diagnostic variables
        • ABN696 - Discrete measurement variables
        • ABN697 - Special setpoint variables
        • ABN727 - Special diagnostic results
        • ABN972 - Device diagnostic status
        • ABP296 - Issuing organization
        • ABP298 - Reference document
        • ABU455 - End connection
        • ABU456 - Sensing element of an electromagnetic flow transmitter
        • ABU457 - Sensing element of an electromagnetic flow transmitter
        • ABU458 - Process connection
        • ABU549 - Function and system design [2]
        • ABU550 - Function and system design [3]
        • ABU553 - Function and system design [4]
        • ABU554 - Manual override
        • ABU555 - Manual override
        • ABU556 - Function and system design [5]
        • ABU557 - Function and system design [6]
        • ABU697 - Reference device conditions [7]
        • ABU698 - Reference device conditions [3]
        • ABV031 - Performance [21]
        • ABV032 - Performance [21]
        • ABV033 - Material of grounding tube/grounding electrode
        • ABV034 - Material of grounding tube/grounding electrode
        • ABV035 - Input [37]
        • ABV036 - Input [18]
        • ABV037 - Assigned variable [18]
        • ABV038 - Input [18]
        • ABV039 - Assigned variable [8]
        • ABV040 - Performance [33]
        • ABV234 - Design ratings for thermowell
        • ABV235 - Rated operating conditions [25]
        • ABV236 - Assigned variable [13]
        • ABV237 - Rated operating conditions [26]
        • ABV238 - Design ratings for thermowell
        • ABV239 - Assigned variable [13]

Low voltage switchgear (IEC 62683 series)

  • 0112/2///62683#ACC001 - LV switchgear and controlgear domain
    • ACC002 - Engineering data for low voltage switchgear, controlgear and their assemblies
      • ACC003 - Documentation
    • ACC010 - LV switchgear and controlgear blocks of properties
      • ACC011 -__ Identification
      • ACC012 - General technical data
      • ACC012 - General technical data
      • ACC013 - Diagnostic functions
      • ACC014 - Main circuit (of a switching device)
      • ACC015 - Input / Output circuit
      • ACC016 - Control and auxiliary circuits
      • ACC017 - Head of the control circuit device
      • ACC018 - Light block of the control circuit device
      • ACC019 - Equipment of control station
      • ACC020 - Emitting source of proximity switch
      • ACC040 - Short-circuit
      • ACC041 - Over-current release
      • ACC050 - Communication interfaces
      • ACC066 - Installation, mounting and dimensions
      • ACC068 - Connection facilities
      • ACC070 - Product certificates and standards
      • ACC071 - Instructions for use
      • ACC072 - Conformity attestation
      • ACG000 - LV switchgear and controlgear specialised blocks of properties
        • ACG002 - General technical data
        • ACG003 - Main circuit (of a switching device)
        • ACG004 - Short-circuit rating
        • ACG005 - Over-current release
        • ACG006 - Control and auxiliary circuits
        • ACG007 - Data communication
        • ACG008 - Installation, mounting and dimensions
        • ACG009 - Connection facilities
        • ACG010 - General technical data
        • ACG012 - Data communication
        • ACG013 - General technical data
        • ACG014 - Main circuit (of a switching device)
        • ACG015 - Over-current release
        • ACG016 - General technical data
        • ACG017 - Control and auxiliary circuits
        • ACG018 - General technical data
        • ACG020 - General technical data
        • ACG021 - Control and auxiliary circuits
        • ACG022 - General technical data
        • ACG023 - Main circuit (of a switching device)
        • ACG024 - Short-circuit rating
        • ACG025 - Installation, mounting and dimensions
        • ACG026 - Connection facilities
        • ACG027 - General technical data
        • ACG028 - Main circuit (of a switching device)
        • ACG029 - Short-circuit rating
        • ACG030 - Installation, mounting and dimensions
        • ACG031 - Connection facilities
        • ACG032 - General technical data
        • ACG033 - Main circuit (of a switching device)
        • ACG034 - Short-circuit rating
        • ACG035 - Installation, mounting and dimensions
        • ACG035 - Installation, mounting and dimensions
        • ACG037 - General technical data
        • ACG038 - Main circuit (of a switching device)
        • ACG039 - Over-current release
        • ACG040 - Control and auxiliary circuits
        • ACG041 - Short-circuit rating
        • ACG042 - Installation, mounting and dimensions
        • ACG043 - Connection facilities
        • ACG044 - General technical data
        • ACG045 - Diagnostic functions
        • ACG046 - Over-current release
        • ACG047 - Input / Output circuit
        • ACG048 - Control and auxiliary circuits
        • ACG049 - Data communication
        • ACG050 - Installation, mounting and dimensions
        • ACG051 - Connection facilities
        • ACG052 - General technical data
        • ACG053 - Diagnostic functions
        • ACG057 - Installation, mounting and dimensions
        • ACG058 - Connection facilities
        • ACG059 - General technical data
        • ACG060 - General technical data
        • ACG061 - Main circuit (of a switching device)
        • ACG062 - Over-current release
        • ACG063 - Short-circuit rating
        • ACG064 - Control and auxiliary circuits
        • ACG065 - Data communication
        • ACG066 - Installation, mounting and dimensions
        • ACG067 - Connection facilities
        • ACG068 - General technical data
        • ACG071 - Control and auxiliary circuits
        • ACG072 - Data communication
        • ACG073 - Installation, mounting and dimensions
        • ACG074 - Connection facilities
        • ACG075 - General technical data
        • ACG076 - Main circuit (of a switching device)
        • ACG077 - Control and auxiliary circuits
        • ACG078 - Data communication
        • ACG079 - Installation, mounting and dimensions
        • ACG080 - Connection facilities
        • ACG081 - General technical data
        • ACG082 - Main circuit (of a switching device)
        • ACG083 - Control and auxiliary circuits
        • ACG084 - Installation, mounting and dimensions
        • ACG085 - Connection facilities
        • ACG086 - General technical data
        • ACG087 - Main circuit (of a switching device)
        • ACG088 - Control and auxiliary circuits
        • ACG089 - Installation, mounting and dimensions
        • ACG090 - Connection facilities
        • ACG091 - General technical data
        • ACG092 - Main circuit (of a switching device)
        • ACG093 - Control and auxiliary circuits
        • ACG094 - Installation, mounting and dimensions
        • ACG095 - Connection facilities
        • ACG096 - General technical data
        • ACG097 - Main circuit (of a switching device)
        • ACG098 - Control and auxiliary circuits
        • ACG099 - Installation, mounting and dimensions
        • ACG100 - Connection facilities
        • ACG101 - General technical data
        • ACG102 - Over-current release
        • ACG103 - Control and auxiliary circuits
        • ACG104 - Installation, mounting and dimensions
        • ACG105 - Connection facilities
        • ACG106 - General technical data
        • ACG107 - Over-current release
        • ACG108 - Control and auxiliary circuits
        • ACG109 - Installation, mounting and dimensions
        • ACG110 - Connection facilities
        • ACG111 - General technical data
        • ACG112 - Input / Output circuit
        • ACG113 - Control and auxiliary circuits
        • ACG114 - Installation, mounting and dimensions
        • ACG115 - Connection facilities
        • ACG116 - General technical data
        • ACG117 - Main circuit (of a switching device)
        • ACG118 - Control and auxiliary circuits
        • ACG119 - Installation, mounting and dimensions
        • ACG120 - Connection facilities
        • ACG121 - Installation, mounting and dimensions
        • ACG122 - General technical data
        • ACG123 - Control and auxiliary circuits
        • ACG124 - Connection facilities
        • ACG124 - Connection facilities
        • ACG125 - General technical data
        • ACG126 - General technical data
        • ACG127 - Control and auxiliary circuits
        • ACG128 - Connection facilities
        • ACG129 - General technical data
        • ACG130 - Control and auxiliary circuits
        • ACG131 - Installation, mounting and dimensions
        • ACG132 - Connection facilities
        • ACG133 - General technical data
        • ACG134 - Control and auxiliary circuits
        • ACG135 - Installation, mounting and dimensions
        • ACG136 - Connection facilities
        • ACG137 - General technical data
        • ACG138 - Head of the control circuit device
        • ACG139 - Control and auxiliary circuits
        • ACG140 - Installation, mounting and dimensions
        • ACG141 - Connection facilities
        • ACG142 - General technical data
        • ACG143 - Head of the control circuit device
        • ACG144 - Light block of the control circuit device
        • ACG145 - Control and auxiliary circuits
        • ACG146 - Installation, mounting and dimensions
        • ACG147 - Connection facilities
        • ACG148 - General technical data
        • ACG149 - Head of the control circuit device
        • ACG151 - Control and auxiliary circuits
        • ACG152 - Installation, mounting and dimensions
        • ACG153 - Connection facilities
        • ACG154 - General technical data
        • ACG156 - Installation, mounting and dimensions
        • ACG157 - General technical data
        • ACG158 - Head of the control circuit device
        • ACG160 - Control and auxiliary circuits
        • ACG161 - Installation, mounting and dimensions
        • ACG162 - Connection facilities
        • ACG163 - General technical data
        • ACG164 - Head of the control circuit device
        • ACG165 - General technical data
        • ACG166 - Head of the control circuit device
        • ACG167 - Connection facilities
        • ACG168 - General technical data
        • ACG169 - Light block of the control circuit device
        • ACG170 - Installation, mounting and dimensions
        • ACG171 - Connection facilities
        • ACG172 - General technical data
        • ACG173 - Head of the control circuit device
        • ACG174 - Installation, mounting and dimensions
        • ACG175 - General technical data
        • ACG176 - Control and auxiliary circuits
        • ACG177 - Installation, mounting and dimensions
        • ACG178 - Connection facilities
        • ACG179 - General technical data
        • ACG181 - Installation, mounting and dimensions
        • ACG182 - General technical data
        • ACG184 - Installation, mounting and dimensions
        • ACG185 - Connection facilities
        • ACG186 - General technical data
        • ACG187 - Installation, mounting and dimensions
        • ACG188 - Main circuit (of a switching device)
        • ACG189 - Connection facilities
        • ACG190 - General technical data
        • ACG191 - Installation, mounting and dimensions
        • ACG192 - Main circuit (of a switching device)
        • ACG193 - Connection facilities
        • ACG194 - General technical data
        • ACG195 - Installation, mounting and dimensions
        • ACG196 - Main circuit (of a switching device)
        • ACG197 - Connection facilities
        • ACG198 - General technical data
        • ACG199 - Installation, mounting and dimensions
        • ACG200 - Main circuit (of a switching device)
        • ACG201 - Connection facilities
        • ACG203 - General technical data
        • ACG204 - Main circuit (of a switching device)
        • ACG205 - Installation, mounting and dimensions
        • ACG206 - General technical data
        • ACG208 - General technical data
        • ACG210 - General technical data
        • ACG212 - General technical data
        • ACG213 - Control and auxiliary circuits
        • ACG214 - Connection facilities
        • ACG215 - General technical data
        • ACG216 - Control and auxiliary circuits
        • ACG218 - General technical data
        • ACG219 - Control and auxiliary circuits
        • ACG221 - Installation, mounting and dimensions of through beam emitter
        • ACG222 - General technical data
        • ACG223 - General technical data
        • ACG225 - Emitting source of proximity switch
        • ACG226 - General technical data
        • ACG227 - Control and auxiliary circuits
        • ACG238 - Head of the control circuit device
        • ACG239 - Control and auxiliary circuits
        • ACG241 - Connection facilities
        • ACG242 - General technical data
        • ACG243 - Control and auxiliary circuits
        • ACG244 - Head of the control circuit device
        • ACG247 - General technical data
        • ACG248 - Control and auxiliary circuits
        • ACG249 - Installation, mounting and dimensions
        • ACG250 - Connection facilities
        • ACG251 - Installation, mounting and dimensions
        • ACG252 - General technical data
        • ACG253 - Control and auxiliary circuits
        • ACG254 - Installation, mounting and dimensions
        • ACG255 - General technical data
        • ACG257 - General technical data
        • ACG258 - Product certificates and standards
        • ACG259 - General technical data
        • ACG261 - General technical data
        • ACG262 - Control and auxiliary circuits
        • ACG265 - General technical data
        • ACG266 - Control and auxiliary circuits
        • ACG269 - General technical data
        • ACG270 - Control and auxiliary circuits
        • ACG272 - Installation, mounting and dimensions
        • ACG273 - General technical data
        • ACG274 - Control and auxiliary circuits
        • ACG275 - Connection facilities
        • ACG276 - Installation, mounting and dimensions
        • ACG277 - General technical data
        • ACG278 - Communication interface
        • ACG280 - Installation, mounting and dimensions
        • ACG283 - General technical data
        • ACG284 - Installation, mounting and dimensions
        • ACG285 - General technical data
        • ACG286 - Installation, mounting and dimensions
        • ACG288 - Head of the control circuit device
        • ACG289 - Control and auxiliary circuits
        • ACG292 - General technical data
        • ACG294 - Control and auxiliary circuits
        • ACG296 - Connection facilities
        • ACG297 - General technical data
        • ACG298 - Equipment of control station
        • ACG300 - General technical data
        • ACG301 - Equipment of control station
        • ACG302 - Control and auxiliary circuits
        • ACG304 - Connection facilities
        • ACG306 - Equipment of control station
        • ACG310 - Equipment of control station
        • ACG314 - General technical data
        • ACG316 - Connection facilities of side 1
        • ACG317 - Connection facilities of side 2
        • ACG318 - Connection facilities of the cable
        • ACG319 - General technical data
      • ACG011 - Equipment of the control device position
      • ACG036 - Interface element of the encoder
    • ACC100 - LV switchgear and controlgear classes
      • ACC200 - Circuit-breaker classes
        • ACC201 - Circuit-breaker
        • ACC202 - Release for circuit-breaker
        • ACC203 - Residual current release for circuit-breaker
        • ACC204 - Shunt release for circuit-breaker
        • ACC205 - Under-voltage release for circuit-breaker
        • ACC206 - Motor-operator for circuit-breaker
        • ACC207 - Plug-in base for circuit-breaker
        • ACC208 - Draw-out cradle for circuit-breaker
      • ACC300 - Switch classes
        • ACC301 - Switch-disconnector
        • ACC302 - Switch-disconnector-fuse
        • ACC303 - Fuse-switch-disconnector
        • ACC304 - Operating handle (of a mechanical switching device)
        • ACC305 - Shaft of operating handle
      • ACC400 - Contactors, starters and similar equipment classes
        • ACC401 - Motor protective switching device
        • ACC402 - Motor management device
        • ACC403 - Motor management device, extension module
        • ACC404 - Motor management device, operator panel
        • ACC405 - Motor-starter combination
        • ACC406 - AC semiconductor motor controller
        • ACC407 - Power contactor, AC switching
        • ACC408 - Capacitor contactor
        • ACC409 - Combination of contactors
        • ACC410 - Power contactor, DC switching
        • ACC411 - Thermal overload relay
        • ACC412 - Electronic overload relay
        • ACC413 - Relay for thermistor protection (PTC)
        • ACC414 - Electromechanical contactor for household and similar purposes
        • ACC415 - Motor-starter
        • ACC416 - Transient suppressor
        • ACC417 - Mechanical interlocking device
        • ACC418 - Motor-starter enclosure
        • ACC419 - Coil for contactor or contactor relay
        • ACC420 - Electromechanical latching device
        • ACC421 - Control interface for contactor
      • ACC500 - Control switch classes
        • ACC501 - Inductive proximity switch
        • ACC502 - Capacitive proximity switch
        • ACC503 - Non-mechanical magnetic proximity switch
        • ACC504 - Ultrasonic proximity switch
        • ACC505 - Through beam photoelectric proximity switch
        • ACC506 - Retroreflective photoelectric proximity switch
        • ACC507 - Diffuse reflective photoelectric proximity switch
        • ACC508 - Diffuse reflective photoelectric proximity switch with background suppression
        • ACC509 - Auxiliary contact block
        • ACC510 - Contactor relay
        • ACC511 - Position switch
        • ACC512 - Rotary limit switch
        • ACC513 - Safety position switch with separate actuator
        • ACC514 - Guard locking safety position switch
        • ACC515 - Trip wire switch
        • ACC516 - Safety switch for hinge door
        • ACC517 - Push-button
        • ACC518 - Rotary button
        • ACC519 - Front element for rotary button
        • ACC520 - Joy stick
        • ACC521 - Foot switch
        • ACC522 - Emergency stop push-button
        • ACC523 - Indicator light
        • ACC524 - Indicating tower
        • ACC525 - Front element for push-button
        • ACC526 - Contact block for control circuit
        • ACC527 - Front element for emergency stop push-button
        • ACC528 - Module for indicating tower
        • ACC529 - Reflector for reflective photoelectric proximity switch
        • ACC530 - Lamp for control device
        • ACC531 - Label holder for push-button and indicator light
        • ACC532 - Label plate for control operation
        • ACC533 - Protective cover for control device
        • ACC534 - Pneumatic time delay auxiliary contact block
        • ACC535 - Electronic time delay auxiliary block
        • ACC536 - Time relay
        • ACC537 - Panel mounted audible signalling device
        • ACC538 - Emitter for through beam photoelectric proximity switch
        • ACC540 - Rotary encoder
        • ACC541 - Linear encoder
        • ACC542 - Control station, empty
        • ACC543 - Control station, complete
        • ACC544 - Pendant control station, empty
        • ACC545 - Pendant control station, complete
        • ACC546 - Two-hand control device
        • ACC547 - Cable connection assembly for control device
      • ACC600 - Multiple function equipment classes
        • ACC601 - Transfer switching equipment
      • ACC700 - Terminal block classes
        • ACC701 - Feed-through terminal block
        • ACC703 - Disconnect terminal block
        • ACC704 - Protective conductor terminal block
        • ACC705 - Fuse terminal block

Measuring equipment for electrical quantities (IEC 63213)

  • 0112/2///63213#KEA001 - Measuring equipment domain for electrical and electromagnetic quantities
    • KEA010 - Measurement equipment blocks of properties
      • KEA011 - Installation, mounting and dimensions
      • KEA012 - General technical data
      • KEA015 - Environmental conditions
      • KEA016 - Input current measurement channel
      • KEA018 - Input voltage measurement channel
      • KEA020 - Additional input/output circuit
      • KEA022 - Data communication
      • KEA024 - Product certificates and standards
      • KEA026 - Data format for record
      • KEA028 - Time synchronisation
      • KEA030 - Memory size
      • KEA032 - PQ reports
      • KEB001 - Measurement equipment specialised blocks of properties
        • KEB004 - General technical data for PMD
        • KEB006 - Environmental conditions for PMD
        • KEB022 - Data communication for PMD
        • KEB024 - Product certificates and standards for PMD
        • KEB104 - General technical data for PQI
        • KEB106 - Environmental conditions for PQI
        • KEB122 - Data communication for PQI
        • KEB124 - Product certificates and standards for PQI
    • KEA100 - Equipment for measuring and monitoring of steady state and dynamic quantities in power distribution systems
      • KEA101 - PMD (Power Metering and monitoring Device)
      • KEA102 - PQI (Power Quality Instrument)

results matching ""

    No results matching ""

    카탈로그

    최근글

    99 other / uml

    04 react / JSX
